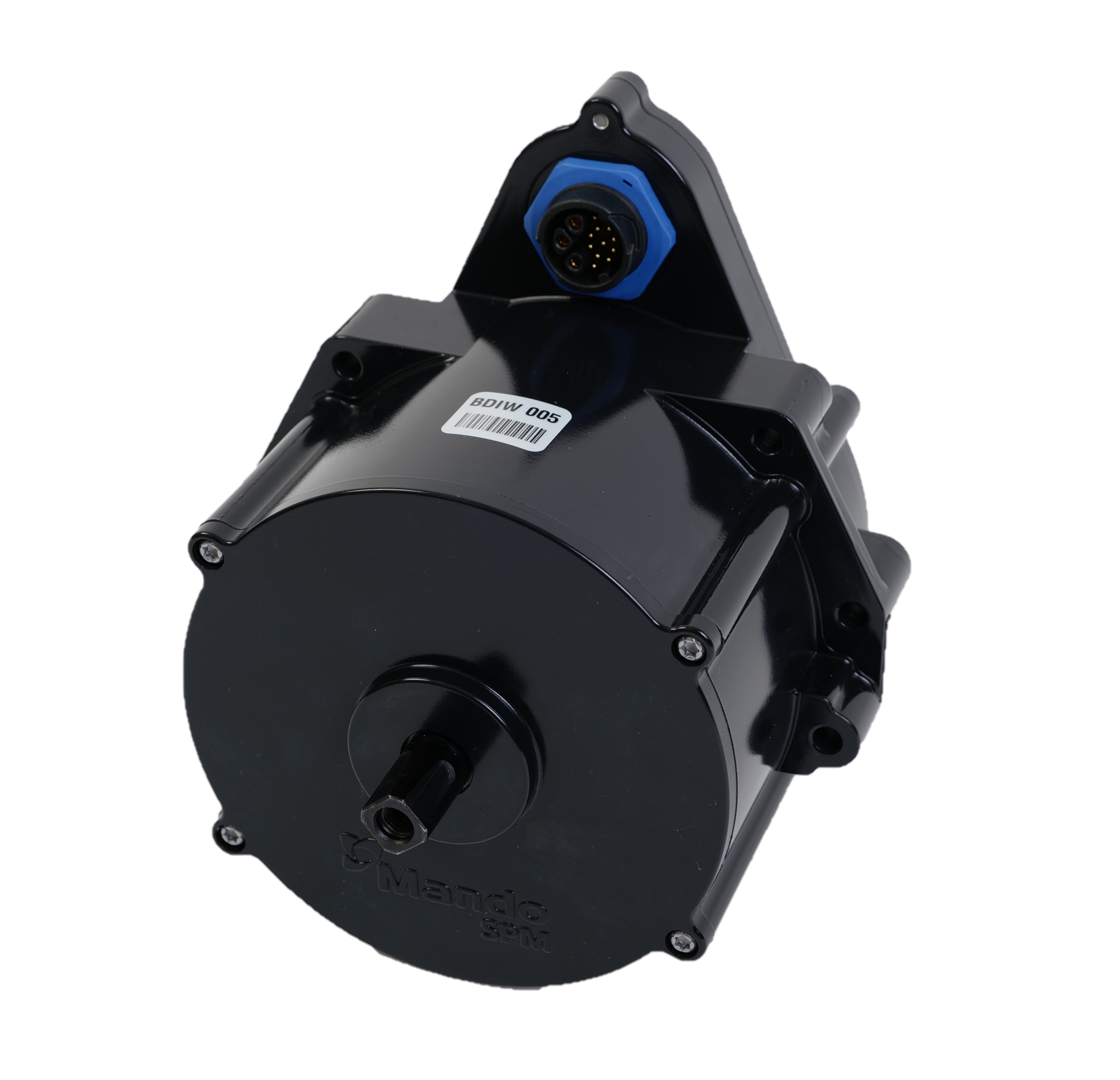

Stationary high-performance single-axis electric motor with integrated control unit. The Pedelec-compliant motor is attached to the chassis, and only the wheel axle rotates.

This motor is particularly suitable for multi-track cargo bike use

Target System Single Motor DriveSystem
Dual Motor Drive System
Feature Controller & Reducer Integrated
NominalOutput Power 250 W
Rated Supply Voltage 48 V
Temporary Peak Power 1,350 W
Max. Torque 120 Nm
IP Level IP55
Max. Speed 25 kph
Dimension L:154 X W:188 X H:201 mm

Interchangeable V48 lithium iron phosphate high-performance battery for multi-track Pedelec (cargo bike) applications. The HL Mando high-performance battery is particularly suitable for long-distance applications with high power requirements. The battery management system (BMS) has been designed for high recuperation currents. The Battery holder was specially designed for the installation and guarantees an optimal installation position for every application.

Cell Type Li Battery (LFP)
Capacity 2,400 Wh
Nominal Voltage 48 V
Charging Voltage 54.7 V
Current 10 A (Continuous @ 25 ℃ AMB)
Time 5.5 ± 0.5 hours (CC: 10 A)
Discharging Current 70 A (Continuous @ 25 ℃ AMB)
Operating Temperature -15 ~ 55 ℃
Dimension L:432 X W:162 X H:213.7 mm
IP Level IP66

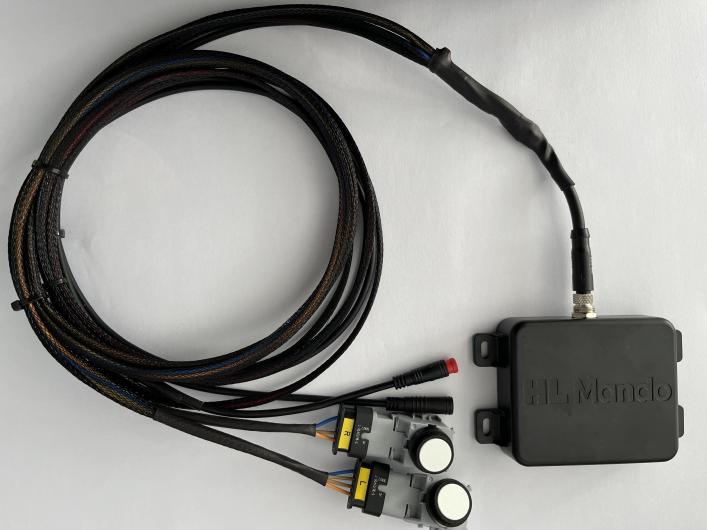

This motor controller is suitable for implementing a variety of motors and drive types (1-4 motors) for Pedelec applications

Rated Supply Voltage 48 V
Nominal Output Power 250 W
Max DC Current 70 A
Max Output Power 2KW
IP Level IP55
Operating Temperature - 20 ~ 55 ℃
Dimension 196 x 182 x 52 mm

The ePedal (pedal generator) is the core component of the Serial Hybrid System (chainless drive) and digital driving. It can determine slope, speed, torque, direction of rotation, and speed through sensors. A specialized software allows for the individual adjustment of various properties and parameters such as pedal feel, different driving modes, reverse driving, recuperation, and climbing capability for the specific Pedelec. The ePedal controls the entire peripherals of the Pedelec such as motor, battery, and recuperation brakes via a CAN-based communication. All parameters of the overall system can be digitally accessed through an interface.

Rated Supply Voltage 48 V
Max. Current (DC) 25 A
Max. Power 800 W
Max. Torque 180Nm
Speed Reducer 2-stage Planetary Gear
Weight 4 kg
Dimension Φ128.5 X 114 mm
Operating Temperature -20 ~ 55 ℃
IP Level IP55
