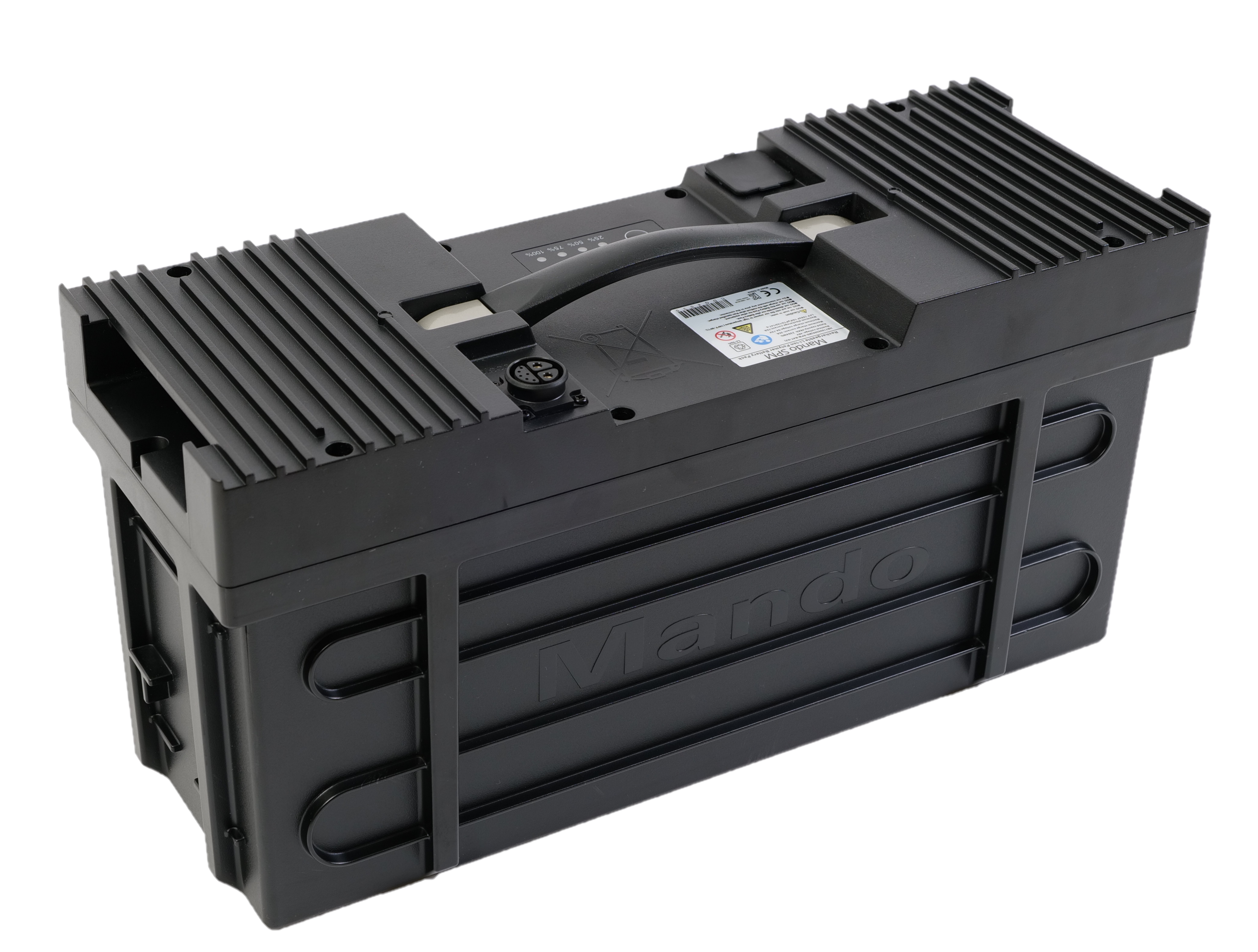

Interchangeable V48 lithium iron phosphate high-performance battery for multi-track Pedelec (cargo bike) applications. The HL Mando high-performance battery is particularly suitable for long-distance applications with high power requirements. The battery management system (BMS) has been designed for high recuperation currents. The Battery holder was specially designed for the installation and guarantees an optimal installation position for every application.

Cell Type Li Battery (LFP)
Capacity 2,400 Wh
Nominal Voltage 48 V
Charging Voltage 54.7 V
Current 10 A (Continuous @ 25 ℃ AMB)
Time 5.5 ± 0.5 hours (CC: 10 A)
Discharging Current 70 A (Continuous @ 25 ℃ AMB)
Operating Temperature -15 ~ 55 ℃
Dimension L:432 X W:162 X H:213.7 mm
IP Level IP66

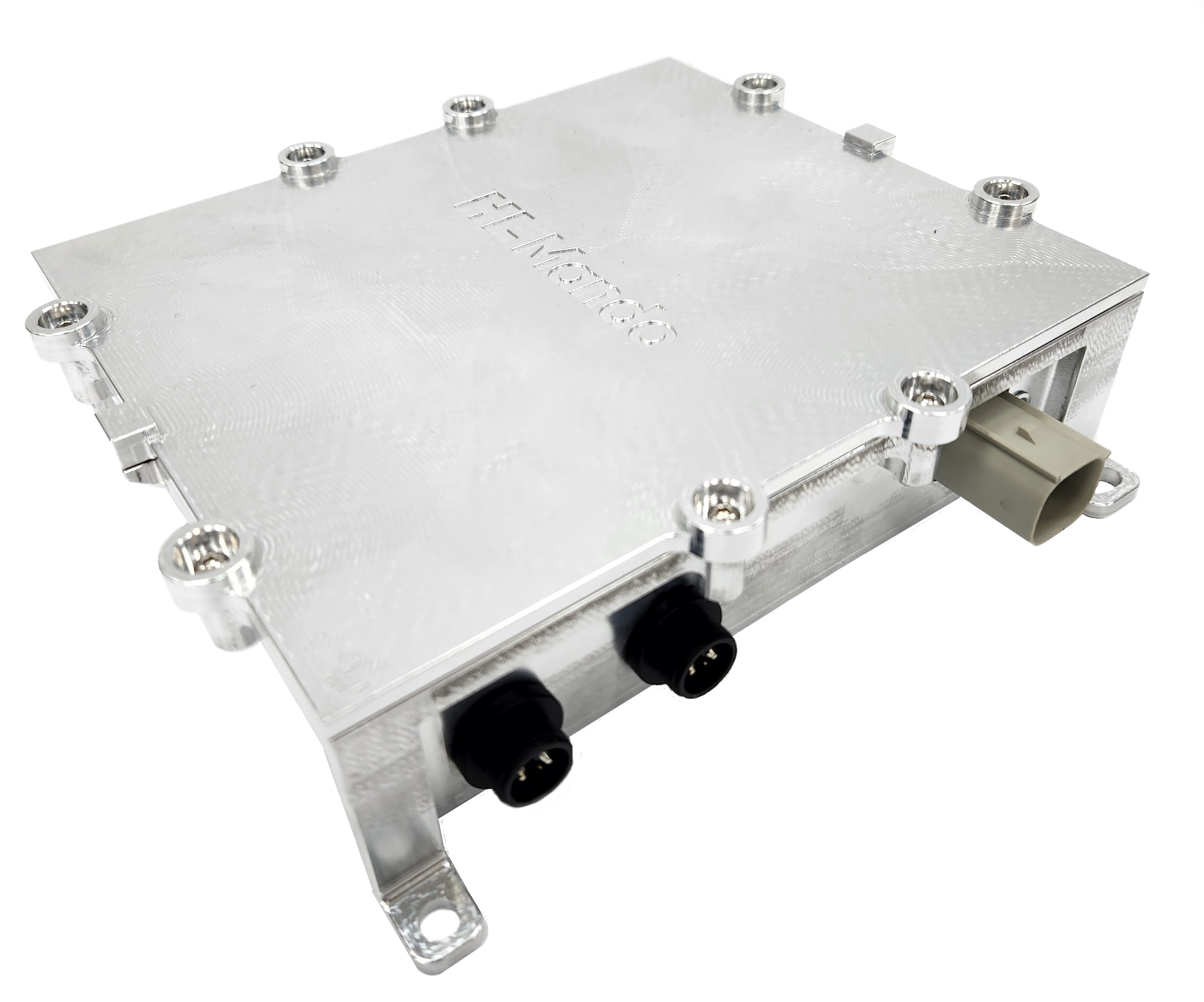

This motor controller is suitable for implementing a variety of motors and drive types (1-4 motors) for Pedelec applications

Rated Supply Voltage 48 V
Nominal Output Power 250 W
Max DC Current 70 A
Max Output Power 2KW
IP Level IP55
Operating Temperature - 20 ~ 55 ℃
Dimension 196 x 182 x 52 mm

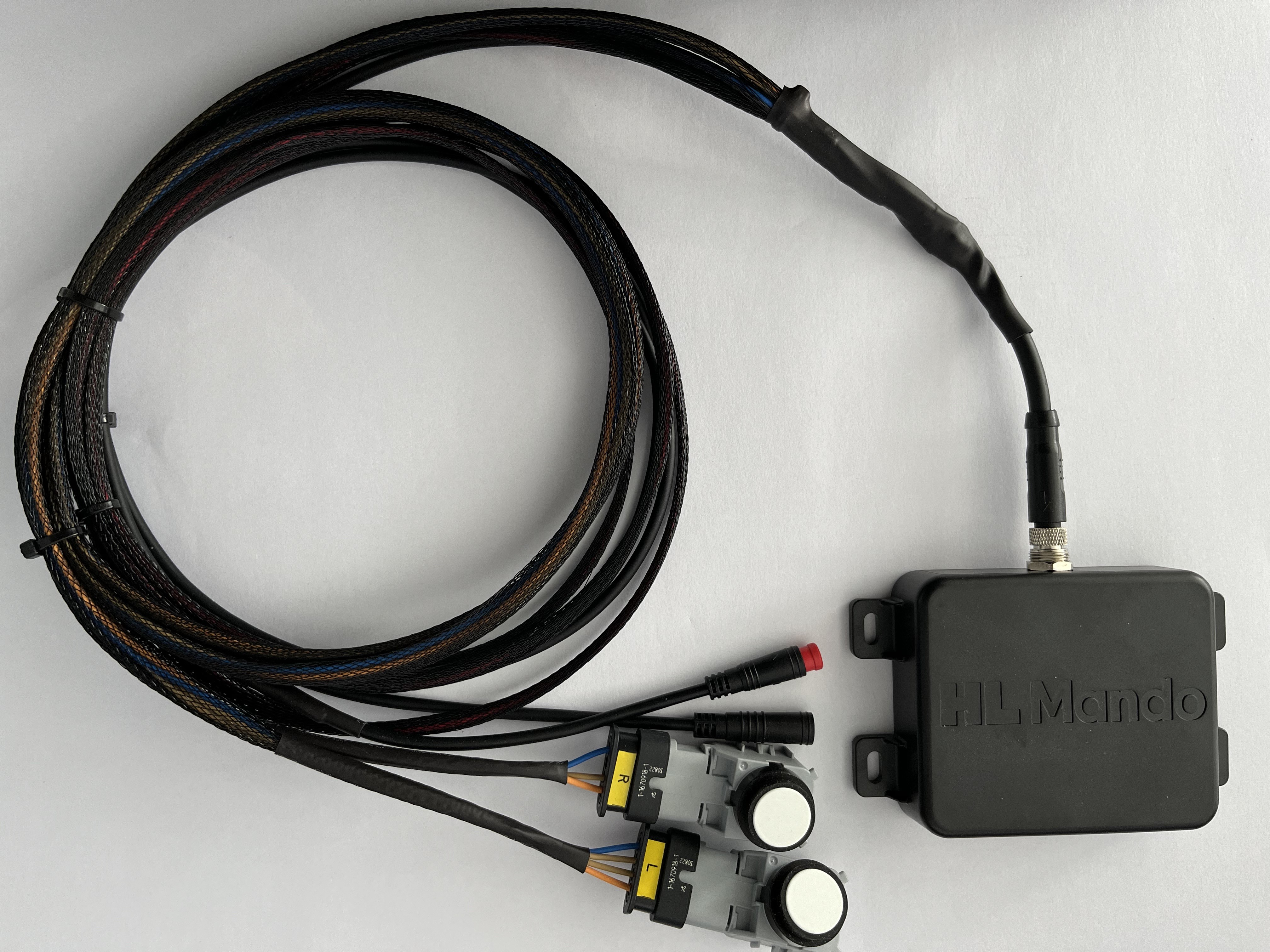

The HL Mando rear detection system (parking aid) for cargo bikes aims to prevent collisions during reverse driving, thus contributing to increased safety for pedestrians and damage prevention for the cargo bike. During reverse driving of multi-track cargo bikes, visibility to the rear is limited. The HL Mando parking aid emits tones, the frequency of which increases as the cargo bike approaches an obstacle. Before the cargo bike collides with the obstacle, the HL Mando rear detection system stops the power transmission, bringing the cargo bike to a halt.

Sensor Type Ultrasonic Sensor
Detectable Range 0.3 ~ 4.0 m
Directivity 50 ~ 60 deg (horizontal)
25 ~ 35 deg (vertical)
Operation Temperature -40 ~ 85 ℃
IP Level IP6K9K(Sensor), IP55(Controller)
Warning Output Audible warning

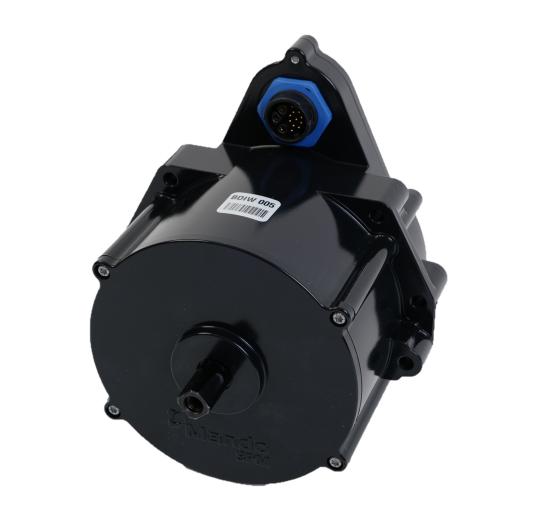

Stationary high-performance single-axis electric motor with integrated control unit. The Pedelec-compliant motor is attached to the chassis, and only the wheel axle rotates.

This motor is particularly suitable for multi-track cargo bike use

Target System Single Motor DriveSystem
Dual Motor Drive System
Feature Controller & Reducer Integrated
NominalOutput Power 250 W
Rated Supply Voltage 48 V
Temporary Peak Power 1,350 W
Max. Torque 120 Nm
IP Level IP55
Max. Speed 25 kph
Dimension L:154 X W:188 X H:201 mm
