Interchangeable V48 lithium iron phosphate high-performance battery for multi-track Pedelec (cargo bike) applications. The HL Mando high-performance battery is particularly suitable for long-distance applications with high power requirements. The battery management system (BMS) has been designed for high recuperation currents. The Battery holder was specially designed for the installation and guarantees an optimal installation position for every application.

Cell Type Li Battery (LFP)
Capacity 2,400 Wh
Nominal Voltage 48 V
Charging Voltage 54.7 V
Current 10 A (Continuous @ 25 ℃ AMB)
Time 5.5 ± 0.5 hours (CC: 10 A)
Discharging Current 70 A (Continuous @ 25 ℃ AMB)
Operating Temperature -15 ~ 55 ℃
Dimension L:432 X W:162 X H:213.7 mm
IP Level IP66

This motor controller is suitable for implementing a variety of motors and drive types (1-4 motors) for Pedelec applications

Rated Supply Voltage 48 V
Nominal Output Power 250 W
Max DC Current 70 A
Max Output Power 2KW
IP Level IP55
Operating Temperature - 20 ~ 55 ℃
Dimension 196 x 182 x 52 mm

The HL Mando rear detection system (parking aid) for cargo bikes aims to prevent collisions during reverse driving, thus contributing to increased safety for pedestrians and damage prevention for the cargo bike. During reverse driving of multi-track cargo bikes, visibility to the rear is limited. The HL Mando parking aid emits tones, the frequency of which increases as the cargo bike approaches an obstacle. Before the cargo bike collides with the obstacle, the HL Mando rear detection system stops the power transmission, bringing the cargo bike to a halt.

Sensor Type Ultrasonic Sensor
Detectable Range 0.3 ~ 4.0 m
Directivity 50 ~ 60 deg (horizontal)
25 ~ 35 deg (vertical)
Operation Temperature -40 ~ 85 ℃
IP Level IP6K9K(Sensor), IP55(Controller)
Warning Output Audible warning

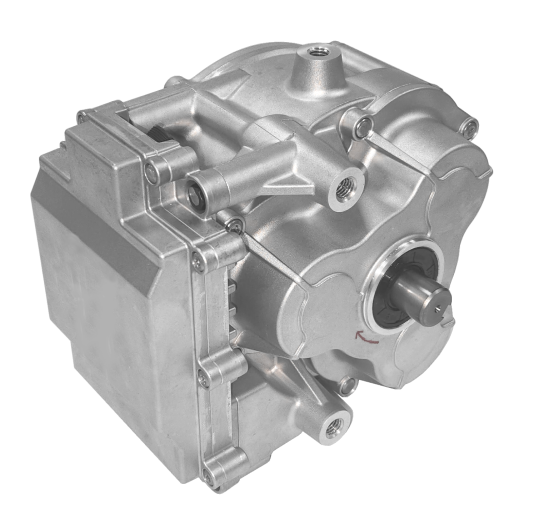

The ePedal (pedal generator) is the core component of the Serial Hybrid System (chainless drive) and digital driving. It can determine slope, speed, torque, direction of rotation, and speed through sensors. A specialized software allows for the individual adjustment of various properties and parameters such as pedal feel, different driving modes, reverse driving, recuperation, and climbing capability for the specific Pedelec. The ePedal controls the entire peripherals of the Pedelec such as motor, battery, and recuperation brakes via a CAN-based communication. All parameters of the overall system can be digitally accessed through an interface.

Rated Supply Voltage 48 V
Max. Current (DC) 25 A
Max. Power 800 W
Max. Torque 180Nm
Speed Reducer 2-stage Planetary Gear
Weight 4 kg
Dimension Φ128.5 X 114 mm
Operating Temperature -20 ~ 55 ℃
IP Level IP55
