Two drum system for installation into a ground hole.
The machine takes place with CE conformity explanation and CE marking, no UL certification available!

The test specimen can be placed comfortably over one of the 3 sliding doors at the side of the protection or from the front by the sectional gate. Each door is equipped with a safety monitoring, which keeps the entrance doors locked until the test stand is in a secure condition again.
The test stand can be entered in the safe condition safely. There is no danger for the examiner by preparing the test bench because of Weinmann variable ground. Each cylinder can be adjusted individually, electricallyand be arranged on the trace length of the test specimen. The cylinders can be equipped with different standard barriers.

Technical data:
voltage: 400V alternating current, pre-fuse 32A über RCD 300mA
ground hole: 5,6m x 3,3m x 1,0m
dimension test bench: 4,0m x 1,7m x 3,0m
dimension safety cover: 4,20m x 2,0m x 2,20m (measured from Lab floor level)
weight: 2,5 to.

Test rig for all standard described break test acc. to ISO 4210-4 (cls. 4.6 + 4.7),
EN 15194 (cls. 4.3.5.9 + 4.3.5.10), DIN 79010 (cls. 5.5.2.2 + 5.5.2.2.2)
wet and dry break incl. wind simulation 12,5 km/h
(as an option: test speed of 16 and 24 km/h)

Test rig with safety cover around the test rig with sliding doors.
Inclusive the delivery you have all needed weights and fixations for the different typ of bicycles.
All forces are measured over high precision load cell amplifier.

Gear motor is covered under the test rig frame.
Drive roll coated with street simulation (Asphalt).
Break lever simulation over pneumatic force controlled actuator.
Foot break simulation over pneumatic force controlled actuator.

Test rig is equipped with a very solid data acquisition system and a modern personal computer system to make all standard defined measuring.
Output of a measuring report over Microsoft® Excel

Technical data:
Power: 400V AC- 3phase+N+Earth 32A fuse
Pressure: min. 6 bar
Water supply: fresh water min. 4bar ½ inch outlet
Drain: Ø50mm at the ground floor under the test rig
maximum bike dimensions:
wheelbase: max. 2.400 mm
length: max. 3.060 mm
ground hole: 5,4m x 2,9m x 0,7m
dimension test bench: 3,8m x 1,3m x 2,4m
dimension safety cover measured from lab floor level: 4,10m x 1,3m x 2,20m
With polycarbonate safety doors shield.

Test rig control system inclusive all licences of National Instruments DASYLab, MS-Windows 10, MS office.

The required installation site is a ground hole with a depth of 700 mm

Base frame made of sturdy aluminum profile with mounting adapters for the load axes.
Dimensions approx. 1.250 x 1.300 mm x approx. 2.150 mm high
Designed as a portal structure with adjustable mounts for the test item.

With safety protective housing made of break-proof, transparent polycarbonate panes and protective doors closed.
All doors are protected by safety limit switches, which can be plugged into the safety circuit on the test bench control.

Protective housing is also noise protection, as the handlebar test is very noisy.

With two height-adjustable, pneumatically force-controlled load axes, including load cells (HBM) for actual force feedback. Handlebar test according ISO 4210 is possible in vertical direction, but not in an angle of 45 degrees.

Including one piece of universal handlebar mount and two force application adapters.
Additional adapters are optionally available.

Including a standard 2-axis force-regulated test bench control with touch-sensitive screen for operation, including valve box with all required servo valves.
The test bench control has a prepared interface for connection to a DASYLab computer system, via which all data can be recorded (optional).

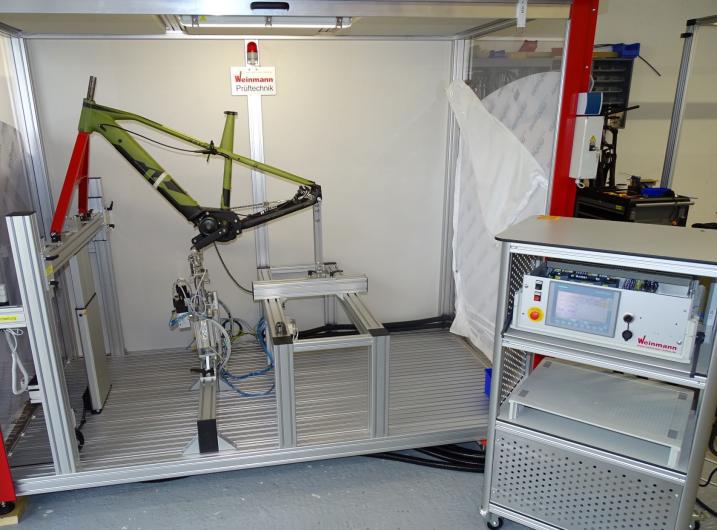

Weinmann Multifunctional test field made out of very solid aluminum profile system with all needed safety screes and special patented Weinmann safety blind® door.
You get a totally safe test machine acc. the latest European machine guide line EG42/2006 with CE mark and certificate of conformity.
We also can offer to you all needed calibration certificates for the measuring instruments.

Dimensions about 2.5m x 1.25m x2.2m height
For dynamic test.
Field equipped with loading units acc. ISO 4210-6 (clause 4.4- 4.5)
All loading units are pneumatic activated and controlled over special servo valves the forces
For measuring we use load cell and amplifier from the well-known German brand HBM
(Hottinger Baldwin Messtechnik) with a max load of 5kN measuring range.
This sensors have a special side force compensation and a long live time.
The horizontal force can be applied at a push/ pull mode F-max 2.000 N
The vertical force can be applied only in a push mode F-max 1.600 N
System detect full automatic all break of sample and stop.

The system is controlled over a very solid PLC with touch screen HMI
Including 2 pc. of deflection sensor and peak value.
This could give you an additional information about the quality of your frame.

At the software you can program 4 different loading blocks with different forces and cycle numbers. This give you possibility to test more harder than ISO required.
