ROHLOFF E-14 2.0
The new electronic Rohloff E-14 shifting system raises the bar for shifting E-bikes transmissions. Never before has shifting been so easy, intelligent and comfortable. All this combined with legendary Rohloff quality.
The new E-14 from Rohloff synchronizes perfectly with the mid-motor, Bosch eBike system to operate the now legendary Rohloff SPEEDHUB 500/14. Urban, leisure, touring and mountain-bikers alike can reap the benefit of the unique, fast and failure-free shifter system.
One push of a button is all it takes to automatically reduce motor derived force upon the transmission and shift the SPEEDHUB. If the button is kept held, then the E-14 shifting system will shift 3-gears at a time in sequence, through all 14 gears if so desired. In addition, once the sensors note the cyclist has become stationary, the E-14 system will automatically shift to a pre-programmed gear to start off again. The Rohloff E-14 is the most efficient and durable shifting system available for mid-motor E-bikes.
LEGENDARY BASIS
The E-14 is designed to complement the SPEEDHUB 500/14. It is this partnership which forms the basis and ensures the durability of an E-14 shifting system.
The SPEEDHUB has, over the past 20 years, proving its reputation as the most durable and reliable bicycle transmission available. SPEEDHUBs have been used in cooperation with E-bikes for almost the same duration, solidifying their position as the only bicycle transmission capable of withstanding such high forces over prolonged periods of time.
With 14 real gears, a total overall gear range of 526% and the highest efficiency of any bicycle gear hub, the Rohloff SPEEDHUB 500/14 forms the durable basis of every premium, high powered E-Bike and S-Pedalec (45kmh). Now, thanks E-14. the ability has arrived to shift this legendary transmission electronically.

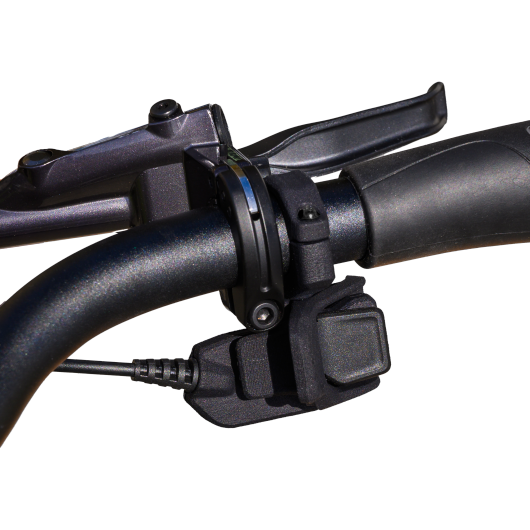

The E-14 shifting system comprises of 2 main components: - the handlebar mounted electronic switch unit and the SPEEEDHUB mounted shifter unit. To ensure these components are relevant and compatible with future developments, the E-14 shifting system can be remotely paired to Smartphones, keeping it compliant with future software updates, custom features and app connectivity. Feature to become active simultaneously with App release.
EFFECTIVE WITH BOSCH
Bosch Intuvia, Nyon and Kiox plus displays can all integrate the E-14 gear indicator and a lot more besides...
The eBike-System synchronizes automatically with the Rohloff E-14. The benefits of this become immediately apparent once you set off. A light press of a button will reduce motor torque to permit a silky-smooth shift between gears. The secret is an ultra-fast, 180ms shift speed combined with an instantaneous drop in output torque from the motor. No bicycle shifting system can compete with this speed to date.
Further shifting comfort is achieved thanks to integrated multi-shift and auto-downshift functions. Press and hold a shift button to shift sequentially in 3-gear steps 1 + 3 + 3 + 3 / 1 - 3 - 3 - 3), regardless of direction, right through the 14-speed range. And when you come to a halt, the E-14 shifting system will automatically return the SPEEDHUB to a pre-programmed gear number, ready to set off again.
ROHLOFF APP FÜR E-14 WITH BOSCH SMART SYSTEM
The new Rohloff E-14 2.0 App is available for download on both Android and IOS platforms. This App is required for individual set-up and service functions of E-14 2.0 in conjunction with a Bosch Smart System. Features include:
• Auto-Downshift set-up (start gear 4 to 9)
• Shift direction set-up (+/-)
• Deactivation of Multishift feature
• Service features - direct online links to processes (calibration, firmware updates, diagnosis upload, error code cache, owners manual)
