Aluminum-backed bushings: MG-1A
MG-1A is a composite material of PTFE compound tape on aluminum shell, the PTFE tape up to 0.30mm thickness enables the bearing can be sized after fixed, meanwhile the thick PTFE layer isolates noise. The bearing is widely applied in OA machinery, shock absorber for light design bicycle.
1. PTFE tape, the very thick PTFE layer isolates noise and allows the design of clearance free application.
2. Aluminum alloy backing, gives exceptionally high load carrying capacity, excellent heat dissipation and light solution.
This material structure enables the final parts to be lighter and easier for installation. Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surface, suitable for rotary, linear and oscillating movement.
With aluminum metal backing, the bearing could be applied for bicycle absorbers, motorcycle absorbers, food industry machinery, package machinery, OA machines and fitness equipment, which needs light design.

Steel-backed bushings: MG-1i
1. PTFE tape, the very thick PTFE layer isolates noise and allows the design of clearance free application.
2. Low - carbon steel, gives exceptionally high load carrying capacity, excellent heat dissipation.
3. Plating thickness, provides good corrosion resistance according to requirements.
This material is designed with simple structure and light weight for the applications which require such. The thin wall design enables easy assembly either with pressing line or manually press and at the same time the thick wall design enables resizing after assembly to obtain a better fitness and higher accuracy grade of the mating. This kind of bearing is designed for clearance fit and interference fit. PTFE layer provides the good performance when running at the dry condition.
With its low friction factor, wear resistance and good lubricating characteristics, this material is widely used in bicycling fork absorbers, chemical industries, medical industries, food industries, textile machines, OA machines and door/trunk hinges and so on.

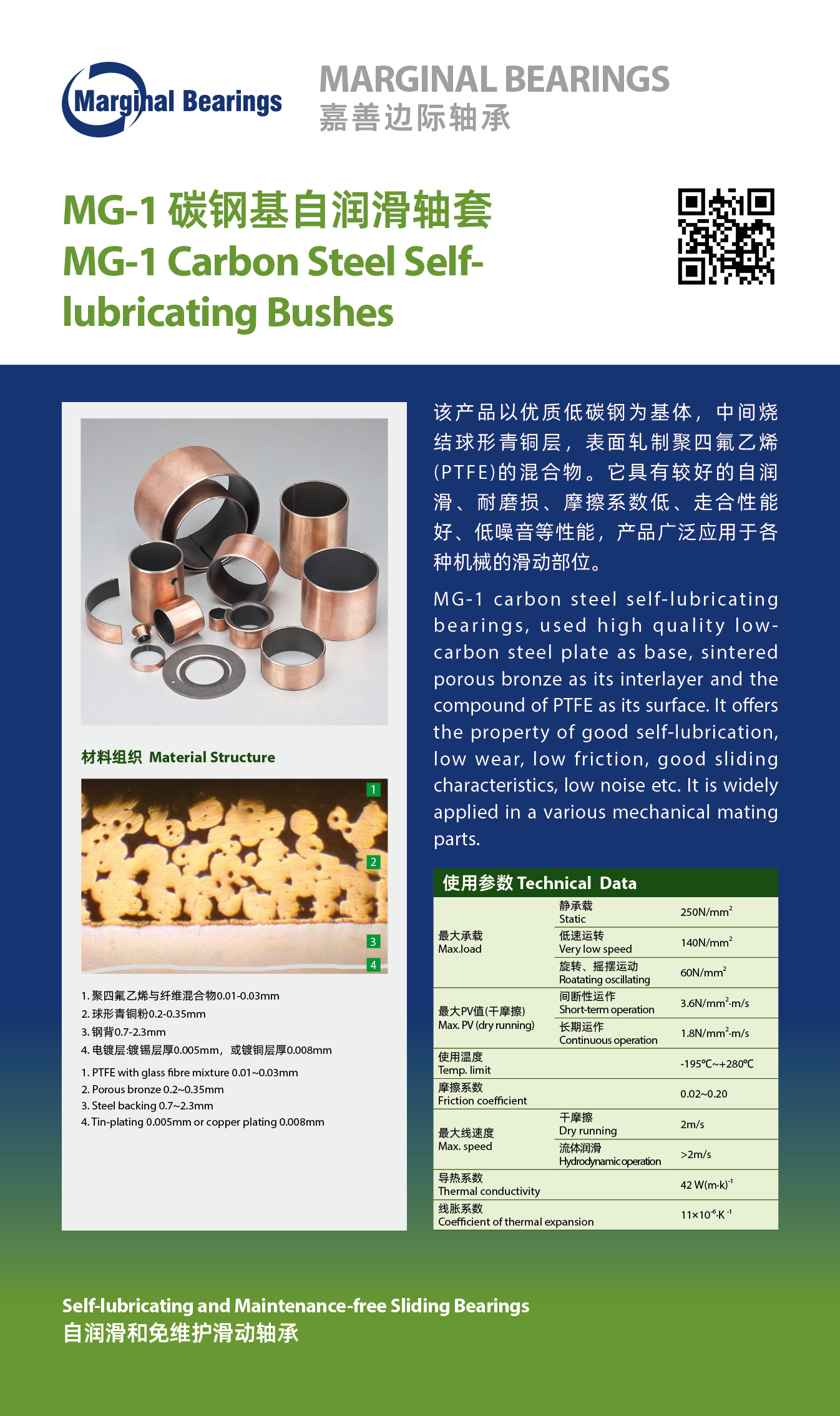

Normal steel-backed bushings: MG-1
1. PTFE/Fibre mixture thickness 0.01~0.03mm, provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20~0.35mm, provides max. thermal conductivity away from the bearing surface, also serves as a reservoir for the PTFE-Fibre mixture .
3. Low- carbon steel, gives exceptionally high load carrying capacity, excellent heat dissipation.
Suitable for dry running with a low coefficient of friction, low wear rate, good sliding characteristics, the transfer film created will protect the mating metal surface. Suitable for rotary and oscillating movement, high chemical resistance, lower absorption of water and reduced swelling. Also performs well with lubrication.
This material meets the demanding criteria for long life and maintenance free performance with or without lubrication.
Automotive: tractors, combines, crop sprayers, earth-movers , graders and other construction, auto machines, specific uses in power steering cylinders, steering gear thrust washers, disc brakes, calipers and pistons, shock absorbers, governor linkage, windshield wiper motor, tilt gear assemblies...
Business machines: photocopy machines, typewriters, mail sorters, postage meter systems, computer terminal printers and peripheral equipment, automatic printing devices, mail processing machinery...
Hydraulics and valves: pumps including gear, rotary, water, axial piston, and other types, ball, butterfly, poppet steam, and other valves and valve trunnions...
Home appliances: tape recorders, refrigerators, air conditioners, cleaners, polishers, sewing machines, ovens, dishwashers, clothes washing machines... And materials handling, marine engine, packaging, textile equipment, tools... etc.

Stainless Steel + PTFE Compound Tape: MG-1S2
1. PTFE Compound Tape, provides self-lubricating feature.
2. Stainless Steel Backing provides mechanical strength and good corrosion resistance.
This material has the good properties of 2 layer bearings including light weight, good wear resistance, noise absorbing and flexible torque. At the same time, the stainless steel backing provides better corrosion resistance and stable chemical resistance features.
The material is suitable for the applications of absorbers, door hinges, trunk hinges,hood hinges, seat recliners and valve support bearings.
