Movaria Powertrain Drive:

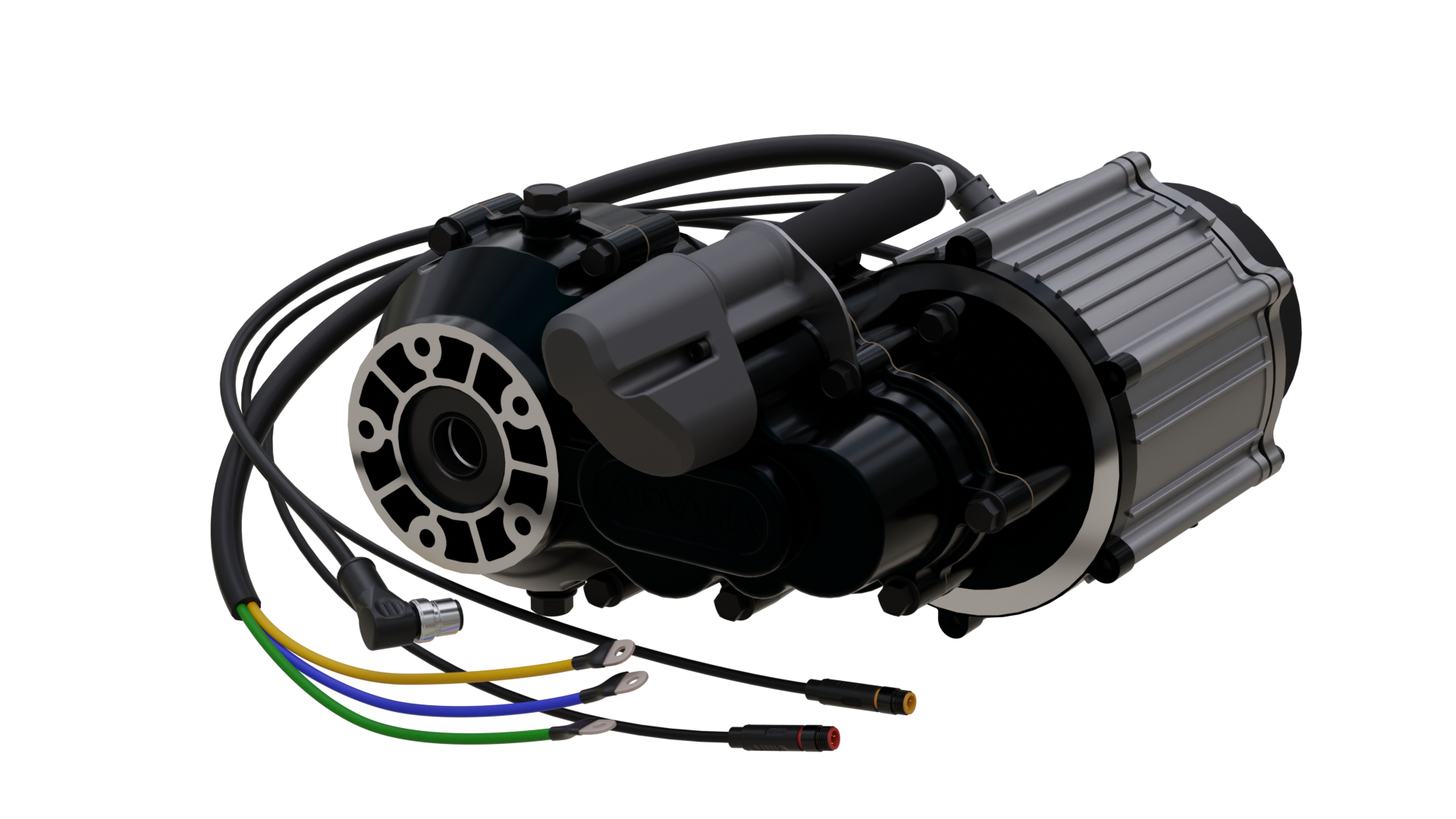

In addition to the Motor Geabox Unit, the Generator and the BCU, we also include the MCU in the "Drive" product group.
The motor control unit (MCU) is responsible for regulating the motor within the system. It connects to the motor's three-phase terminals and incorporates a sensor cable connector located on the side of the MCU. This setup ensures efficient communication and operation of the motor, allowing for precise control and monitoring of performance.
Movaria Powertrain Accessories:
The ANT-00 Advanced Network Transceiver is a versatile outdoor solution designed for robust connectivity. This waterproof 2-in-1 combo antenna supports both 4G and GPS frequencies, enhancing the Internet capabilities and Global Navigation Satellite System (GNSS) functionality of the BCU-12. Ideal for outdoor applications, the ANT-00 ensures reliable performance in various environmental conditions, making it a perfect choice for users needing a dependable network connection and accurate positioning services.
The BEL-00 bell is an electrically actuated device crafted to replicate the functionality of a traditional bicycle bell known for its clear and bright sound. It is designed to adhere to regulations such as the StVO (German Road Traffic Regulations) and other similar legal standards. The focus of the design is to produce a sound that is characteristic of conventional mechanical bells while seamlessly integrating electric actuation for smooth and reliable operation.
The HDU-00 Heat Dissipation Unit, commonly known as a "brake chopper," plays a crucial role in protecting the system by converting excess energy into heat. This process helps to mitigate voltage spikes that can occur during recuperation, particularly when dealing with a fully charged, overheated, or unbalanced battery. To enhance safety, the HDU is equipped with a continuous temperature monitoring feature that keeps track of its housing temperature. This ensures the protection of both the unit and its users from overheating and potential burns.
The RCA-00 Heated Grips are specially designed bicycle handlebar grips that offer three adjustable levels of heat. These grips are perfect for keeping your hands warm during cold rides, ensuring a comfortable and enjoyable cycling experience. With user-friendly controls, riders can easily switch between heat settings to find their ideal warmth while maintaining a secure grip on the handlebars. Whether you're commuting in chilly weather or tackling a mountain trail, the RCA-00 Heated Grips are an excellent addition to your biking gear.
The RCA-10 features a sealed waterproof bistatic probe, making it highly resistant to dust and water. This design is ideal for use in wet and harsh measurement environments. With a compact 3 cm blind zone, the RCA-10 is versatile enough to handle various detection conditions. It is user-friendly and offers high performance and reliability, making it a top choice for commercial-grade applications.
The RCA-20 Tire Pressure Sensor is designed for effective leakage detection and provides warnings for both under- and overpressure situations. Its user-friendly design allows for easy installation by simply screwing the sensor onto the valve, ensuring a hassle-free setup for optimal tire safety.
Movaria Powertrain User Interface:
The Hazard & Gear Switch (HGS) is a versatile switch unit featuring two bistable switches designed for ease of use. The left switch is marked with a hazard symbol, while the right switch displays a rabbit and turtle symbol, indicating different gear settings. Constructed with a durable aluminum housing, this switch unit is easily mountable on a handlebar for convenient access. At the back, you'll find two individual cables equipped with connectors, allowing for straightforward integration with the BCU wire harness. This design ensures reliable performance and enhances user control in various conditions.
The Human-Machine Interface (HMI) features a user-friendly display and a remote control for seamless system management. The display is highlighted by a 3.5-inch color screen that provides all essential information at a glance. On the back of the display, there are two cables: one connects to the BCU wire harness, while the other connects to the remote control. The remote allows users to turn the system on and off and to navigate through various HMI functions effortlessly. Additionally, the HMI is equipped with a USB-A port for charging external devices, enhancing its versatility. An integrated RFID module is also located on the back of the display, enabling the use of RFID tags to secure the Movaria drive system. This combination of features ensures a robust and efficient interface for users, making it an excellent choice for modern applications. The HMI-10 features integrated short-range wireless technology, allowing for convenient functions such as unlocking vehicles without actively using a car key. It also supports connectivity with various short-range wireless devices, including Tire Pressure Sensors (RCA-20).
The Indicator & Horn Switch (IHS) is designed for easy installation on the handlebar. The clear labeling on the plastic housing and buttons allows users to quickly identify the functions for the horn, hazard lights, and indicators. At the back of the switch, there is a single cable equipped with a connector that seamlessly connects to the BCU wire harness, ensuring reliable functionality and straightforward setup.
