A resolver is a rotating electrical transformer that is used to measure degrees of rotation.

The IR series brushless DC motors include a resolver providing up to 15-bit resolution. These motors are perfect for AMR/AGV etc. which require low speed and frequent stops, such as in warehouse and factory applications.

The MR series brushless DC motor is an IR series motor with a reduction gear, parking brakes, etc., and is supplied as one fully integrated drop-in unit. The planetary gears offer gear ratios of 10:1 and 20:1.

Key Features:

• Compact design enabling product miniaturization
• IPX4-rated waterproof design
• Motor efficiency up to 90%
• Precise positioning
• Robust sensor construction with stable sensing capability
• Can be operated at 24-48 V range
• Elaborate speed controlling
• Smooth acceleration and motion

Models:

• IR-74BZA (Size: 60.0mm*60.0mm*L66.5mm, 24V, 200W)
• IR-94BZA (Size: 85.0mm*85.0mm*L66.5mm, 48V, 355W)

Gear Ratio 10:1 Motors:

• MR-94BZA (Size: 85.0mm*85.0mm*L104.5mm, 24V, 180W)
• MR-94BZB (Size: 85.0mm*85.0mm*L143.0mm, 24V, 180W)

Gear Ratio 20:1 Motors:

• MR-94BZD (Size: 85.0mm*85.0mm*L125.5mm, 24V, 180W) Coming soon
• MR-94BZE (Size: 85.0mm*85.0mm*L164.0mm, 24V, 180W) Coming soon

The IA-IB series frameless hollow brushless DC motors are designed for robots or other non-automotive applications where built-in motors are required.

Key Features:

• Suits a wide range of applications: The motors, consisting of the rotor and stator, are available in four different outputs (200-950 W @48 V) and sizes (outer diameter of the stator, 60-120 mm)
• Smaller, lighter products: The motor simply consists of the rotor and stator for easy installation and product downsizing.
• Energy saving design: Uniquely engineered magnetic circuit helps to sustain high energy efficiency over long operating periods.
• Smooth movement: Low cogging for smooth motion.

Models (Stator / Rotor):

• IA-A3BZA / IB-A3BZA (Stator Diameter Φ60.0mm, Inner Diameter Φ26.0mm, 48V, 200W)
• IA-B4BZA / IB-B4BZA (Stator Diameter Φ75.0mm, Inner Diameter Φ35.0mm, 48V, 500W)
• IA-C5BZA / IB-C5BZA (Stator Diameter Φ90.0mm, Inner Diameter Φ48.0mm, 48V, 650W)
• IA-D5BZA / IB-D5BZA (Stator Diameter Φ120.0mm, Inner Diameter Φ55.0mm, 48V, 950W)

The IS Series brushless DC motors equipped with uniquely-designed magnetic circuit are optimized for battery-powered commercial robots and various types of industrial equipment. Available in three different rated outputs and three different flange side dimensions.

Key Features:

• Compact design enabling product miniaturization
• IPX4-rated waterproof design
• Motor efficiency up to 90%

Models:

• IS-74BZA (Size: 60.0mm*60.0mm*L44.5mm, 24V, 200W)
• IS-94BZC (Size: 85.0mm*85.0mm*L45.5mm, 24V, 250W)
• IS-B5BZA (Size: 100.0mm*100.0mm*L54.0mm, 48V, 640W)

The DS/DR Series controllers are optimized to work with battery-powered systems using Mabuchi motors. The controllers offer easy integration with no interference due to their low-EMI design and capability.

Key Features:

• Compact design enabling product miniaturization: Our controllers generate high output for their size. Their slim design enables high torque and flexible product design. Combined with a compact motor controller, our motors contribute to efficient space allocation for batteries and other components.
• IPX4-rated waterproof design: Our controllers have an IPX4 waterproof rating. The water-resistant design is ideal for products operated in demanding and outdoor conditions (e.g. delivery robots, agricultural robots).
• Low-EMI design: Our controllers have an EMI-suppressing design, compliant with CISPR32 Class B, which minimizes the risk of product malfunction caused by communication failures due to interference. As such, no external noise suppressing is needed.

Models:

• DS-34EC1-IS311 (For Motors IS-74***)

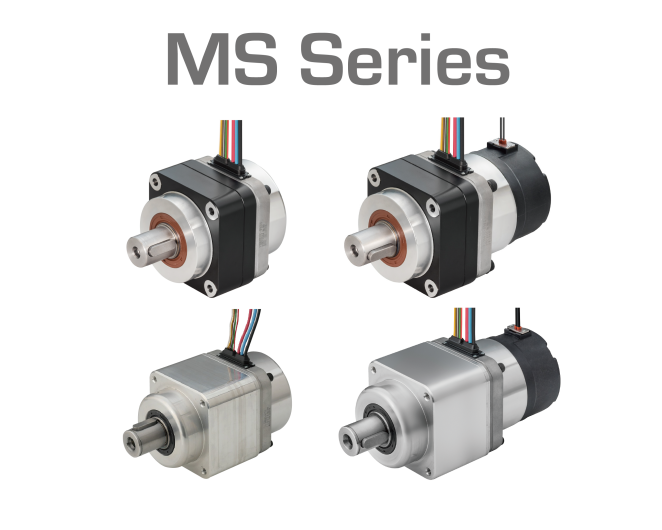

• DS-34EC1-IS221 (For Motors IS-94*** and MS-94***)
• DR-40FC1 (For Motors IR-74***, IR-94*** and MR-94***)
• DR-40FC3 (For Motors IR-94*** and MR-94***)
