enviolo

Description

Technology
A smart range of hubs for different riders needs.
The continuously variable planetary (CVP) technology forms the foundation of all enviolo stepless shifting products.

The continuously and stepless variable planetary transmission enables cyclists to effortlessly change from one gear ratio to the next. Shifting while pedaling under high capacity has never been easier with enviolo.

148mm platform
enviolo’s all new 148mm modular axle platform has been developed to provide our OEM’s the greatest flexibility in e-bike frame design, targeting increased chain/belt line and compatibility with derailleur and thru axle dropout configurations.

With industry drivetrain trends pushing the constraints / limitations of narrow belt / chain line and 135mm rear axle designed e-bikes, enviolo has developed an all new dedicated 148mm hub shell offering wider spoke flanges and a wider belt / chain line. This new hub shell design is available for the full portfolio.

Compatible hardware with all leading dropout and axle standard will be offered, including Sram UDH, Syntace X12, DT Swiss, Maxle and Shimano E-thru.

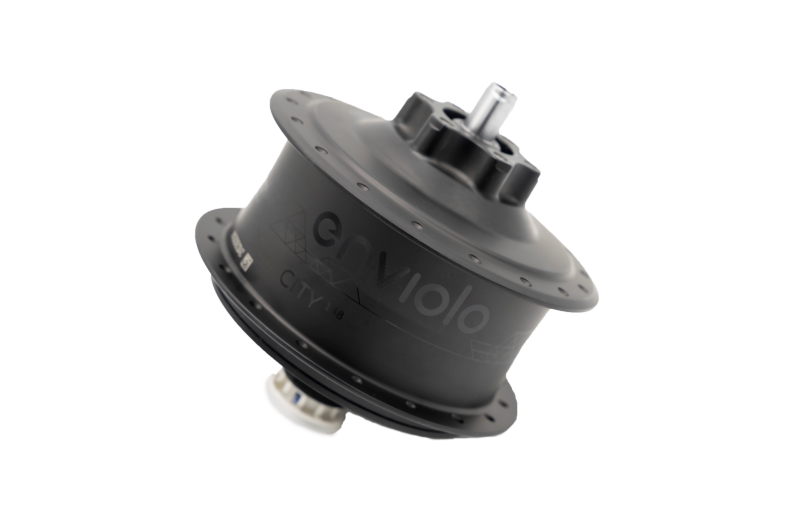

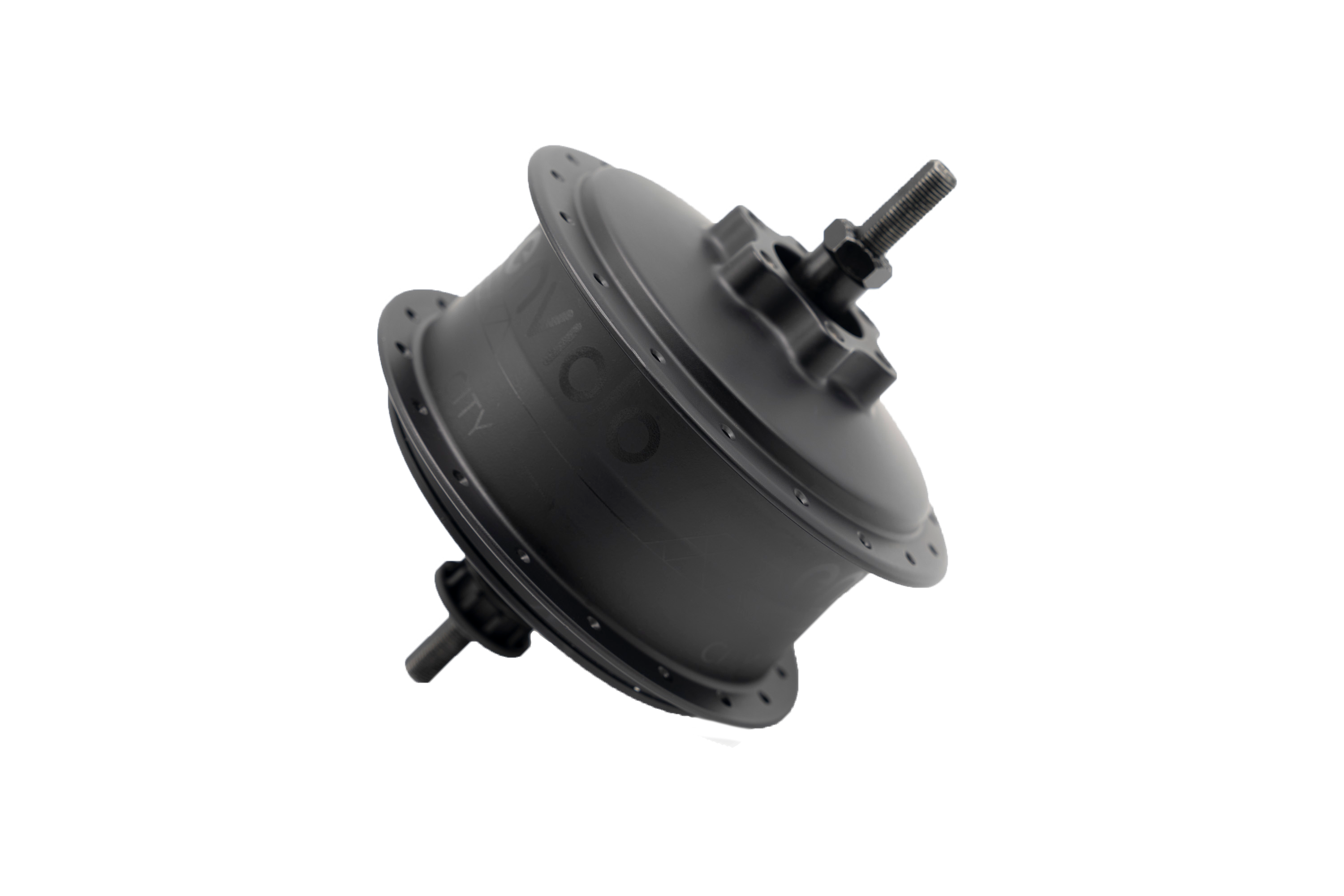

ENVIOLO HUBS:

  • URBAN (256% ratio range, 55 Nm,140 Kg GVW)
  • CITY (310% ratio range, 75 Nm,160 Kg GVW)
  • TREKKING (380% ratio range, 85 Nm,180 Kg GVW)
  • HEAVY DUTY (380% ratio range, 100 Nm,160 Kg GVW)
  • EXTREME (380% ratio range, 100 Nm,300 Kg GVW)
