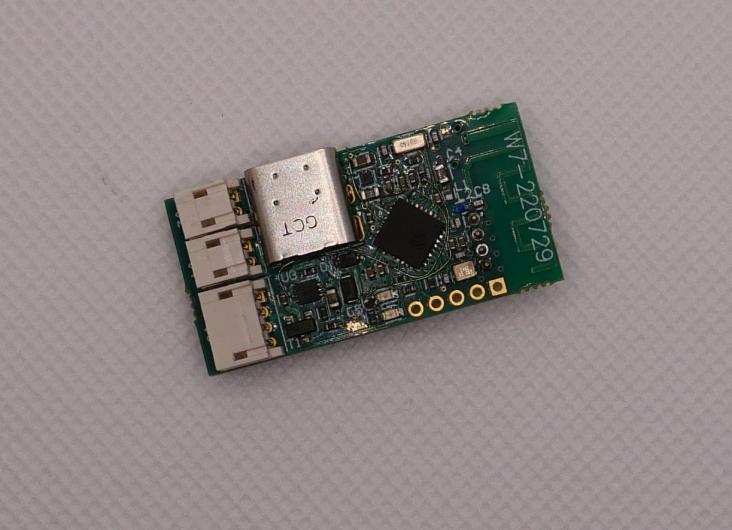

ccW is a miniaturized and affordable connectivity device offering automated remote monitoring & tracking, based on an ESP32 microcontroler.

Connectivity

• WIFI (2.4 Ghz ISM band)​
• Bluetooth (BLE)​
• Internal antennas​

Positioning

• WIFI​ (triangulation)
• BLE​ (Bluetooth beacon)

Motion detection

• Software-based motion detection​
• Power management triggered by motion detection​

CAN​

• Compatible with CAN-enabled vehicles & devices.

Storage

• Reliable file system with wear leveling and journaling​
• Stores > 500 events​

I/O​

• USB-C (D+ / D-)​
• 2 x UART (if CAN is disabled) (JST-ZH 4 pins)​
• 1 x CAN (JST-ZH 2pins)​
• 2 x GPIO (JST-ZH 4 pin)​
• 2 x LED for status​
• 1 x Li-ion battery port (JST-ZH 2 pin)​

Physical

• Dimensions : 34 mm x 20 mm x 8.5 mm​
• Ingress protection : depending on casing​
• Weight : 4 g​
• JST-ZH connectors​

Electrical

• Operating voltage DC 3.3 V to 5V (optional up to 55 V)​
• Average work current : 3 mA (@ 3.3 V and 5V)​
• Deep sleep current : 8 µA (@ 3.3 V) or 350 µA (55V)​
• Charging current : 400 mA max (@ 5 V) : Li-ion battery

Platform ​

• Data sent to Connected Cycle Fleet Management platform​
• Configuration update over the air​
• Firmware update over the air​

Coverage

• Worldwide radio compatibility (2.4 Ghz ISM band)​
• Records geolocation in areas with Wi-Fi networks in reach​
• Sends location updates when Wi-Fi public networks are in reach​, a patented technology from Connected Cycle.
• Option : also sends location using private Wi-Fi networks in customer premises (*)​
• Option : also sends location using private BLE (**)​

(*) Note: private Wi-Fi network shall be configured according to network requirements by Connected Cycle.​

(**) Note: private BLE shall be configured according to requirements provided by Connected Cycle.​
