DU Bushing MG-1

Structure
1. PTFE tape, the very thick PTFE layerisolates noise and allows the design of clearance free application.
2. Aluminum alloy backing, gives exceptionally high load carrying capacity, excellent heat dissipation and light solution.
Features
This material structure enables the final parts to be lighter and easier for installation. Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surface, suitable for rotary, linear and oscillating movement.
Typical Applications
With aluminum metal backing, the bearing could be applied for OA machines, fitness equipment, bicycle, motorcycle, food industry machinery and package machinery, which need light design.

Structure
1. PEEK+PTFE0.30~0.50mm, gives high wear resistance and low friction even only minute quantities of lubricant are supplied. This bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.
2. Bronze layer 0.20~0.35mm, provides max.thermal conductivity away from the bearing surface, also serves as a reservoir for the PTFE/PEEK mixture.
3. Steel backing, provides mechanical strength and high load carrying capacity.
Structure
1. MG-8 provides maintenance-free operation;
2. Operate satisfactorily without lubrication under light duty and low speed;
3. MG-8 has a high PV capability under high temperature;
4. Temperature allowance is from -150C~+250℃;
5. Good chemical resistance;
6. High static and dynamicload capacity;
7. No water absorption;
8. Suitable for rotating, oscillating,reciprocating and sliding movement.
Typical Applications
MG-8 bearings application covers gear pump, ABS system, piston pump, gear motor, machine tools, agricultural machinery and so on. The materials is recommended with initial pre-lubrication at assembly.

MG-2Y can work for a long time without oil in the condition of prelubricated with lubrication indents design. It is widely applied in metallurgy machinery, mining machinery, water conservancy machinery, automobile, building machinery, agriculture machinery, rolling steel industry etc.
1. Good load capacity and anti-wear.
2. It is used in high load capacities and low speed with rotating, oscillating or frequent stop-start motion.
3. It can work for a long time without oil in the condition of boundary lubrication, but to oil or grease lubrication periodically, the working life span will become longer.
4. It is machinable for the thicker layer of POM.
5. The bushes can be applied in auto chassis, forging machines, metallurgicals, civil engineerings, power stations, strip rolling industries etc.
6. MG-2Y is widely used in the machine where lead is unacceptable.
Standard Size：
Cylindrical Bearing , Thrust washer , Strip .
Non-Standard Size：
Cylindrical Bearing, Thrust washer, Strip, Bearing bushing, Wear strips, Steel combine units.

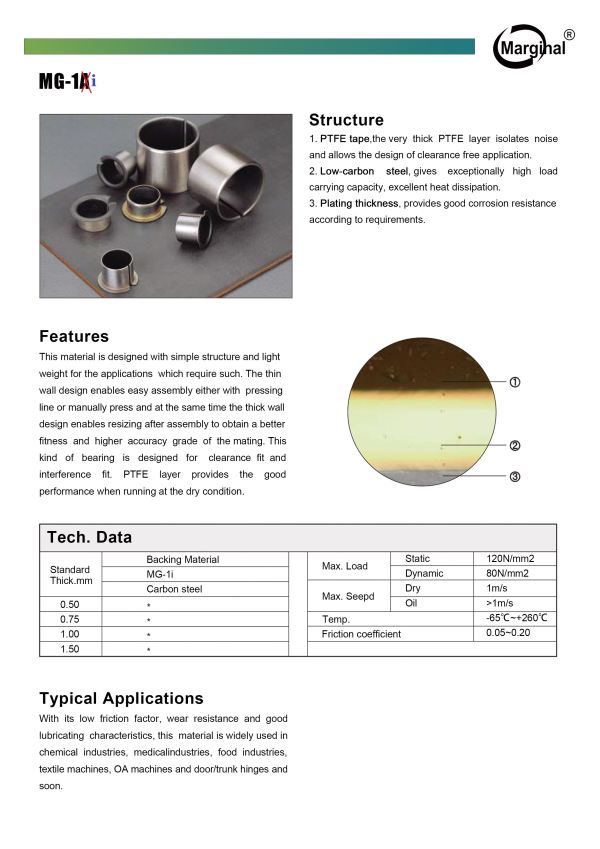

Structure:
1. PTFE tape,the very thick PTFE layer isolates noise and allows the design of clearance free application.
2. Low-carbons teel, gives exceptionally high load carrying capacity, excellent heat dissip ation.
3. Plating thickness, provides good corrosion resistance according to requirements.
Features:
This material is designed with simple structure and light weight for the applications which require such. The thin wall design enables easy assembly either with pressing line or manually press and at the same time the thick wall design enables resizing after assembly to obtain a better fitness and higher accuracy grade of the mating. This kind of bearing is designed for clearance fit and interference fit. PTFE layer provides the good erformance when running at the dry condition.
Typical Applications
With its low friction factor, wear resistance and good lubricating characteristics, this material is widely used in chemical industries, medicalindustries, food industries, textile machines, OA machines and door/trunk hinges and soon.

Structure
1. PTFE tape, the very thick PTFE layerisolates noise and allows the design of clearance free application.
2. Aluminum alloy backing, gives exceptionally high load carrying capacity, excellent heat dissipation and light solution.
Features
This material structure enables the final parts to be lighter and easier for installation. Suitable for dry running, low coefficient of friction, lower wear, good sliding characteristics, the transfer film created can protect the mating metal surface, suitable for rotary, linear and oscillating movement.
Typical Applications
With aluminum metal backing, the bearing could be applied for OA machines, fitness equipment, bicycle, motorcycle, food industry machinery and package machinery, which need light design.

Structure
1. PEEK+PTFE0.30~0.50mm, gives high wear resistance and low friction even only minute quantities of lubricant are supplied. This bearing surface carries a pattern of circular indents which should be filled with grease on assembly of the bearing.
2. Bronze layer 0.20~0.35mm, provides max.thermal conductivity away from the bearing surface, also serves as a reservoir for the PTFE/PEEK mixture.
3. Steel backing, provides mechanical strength and high load carrying capacity.
Structure
1. MG-8 provides maintenance-free operation;
2. Operate satisfactorily without lubrication under light duty and low speed;
3. MG-8 has a high PV capability under high temperature;
4. Temperature allowance is from -150C~+250℃;
5. Good chemical resistance;
6. High static and dynamicload capacity;
7. No water absorption;
8. Suitable for rotating, oscillating,reciprocating and sliding movement.
Typical Applications
MG-8 bearings application covers gear pump, ABS system, piston pump, gear motor, machine tools, agricultural machinery and so on. The materials is recommended with initial pre-lubrication at assembly.

MG-2Y can work for a long time without oil in the condition of prelubricated with lubrication indents design. It is widely applied in metallurgy machinery, mining machinery, water conservancy machinery, automobile, building machinery, agriculture machinery, rolling steel industry etc.
1. Good load capacity and anti-wear.
2. It is used in high load capacities and low speed with rotating, oscillating or frequent stop-start motion.
3. It can work for a long time without oil in the condition of boundary lubrication, but to oil or grease lubrication periodically, the working life span will become longer.
4. It is machinable for the thicker layer of POM.
5. The bushes can be applied in auto chassis, forging machines, metallurgicals, civil engineerings, power stations, strip rolling industries etc.
6. MG-2Y is widely used in the machine where lead is unacceptable.
Standard Size：
Cylindrical Bearing , Thrust washer , Strip .
Non-Standard Size：
Cylindrical Bearing, Thrust washer, Strip, Bearing bushing, Wear strips, Steel combine units.
