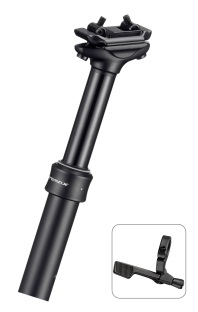

Dropper Seat Post

Hydraulic Adjustable System with Wire Pulling System

--------------------------------------------------------------------

Material: AL6061 shaft + Forged alloy head / clamps

Offset: 0 mm

Rise: ±13˚

Finish: Black / Silver / Anodized / S.B. color

Packing: 50pcs / ctn / 1.3cuft

Produced in: Taiwan

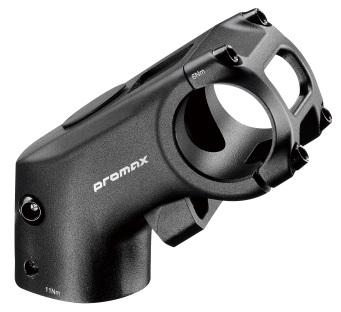

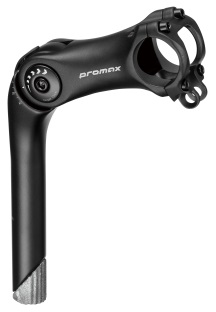

Unique no side-play adjustment mechanism design to

secure a stiffer and safer ride

----------------------------------------------------------------

Material: Forged AL6061

Angle: 90°~140°

Extension: MQ-574L: 110mm

MQ-574SL:90mm

Bar bore: Ø35mm

Quill Dia: Ø25.4mm

Quill length: 150 / 180 / 230mm

Weight: 583g; Ø25.4 x 180mm Quill

Finish: Black / Silver / Anodized / S.B. color

Packing: 30pcs / ctn / 0.87cuft

Produced in: Taiwan

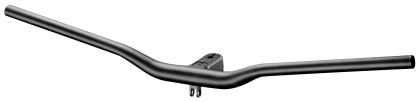

Material: AL6061

Bar bore: Ø31.8mm

Up sweep: 4°

Back sweep: 9°

Width: 700 / 720 / 740 / 750 / 760 / 780mm

Rise: 15mm

Extension: 60mm

Clamp I.D. : Ø28.6mm

Stack height: 47.6mm

Weight: 559g: 700 / 566g: 720 / 573g: 740

580g: 750 / 587g: 760 / 594g: 780mm

Finish: Black / Silver / Anodized / S.B. color

Packing: 25pcs / ctn / 1.9cuft

Produced in: Taiwan

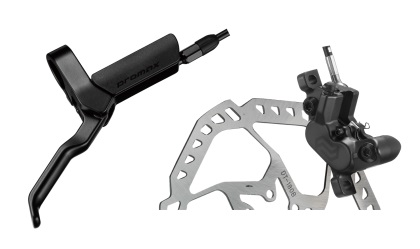

Brake Lever

Reach adjustment

Aluminum alloy lever and bracket

Hose joint: banjo

Caliper

2-pcs aluminum forged alloy caliper body

4 heat-insulating piston

Hose joint: banjo

Compatible with post-mount (Manitou) type

Adapter available for international standard

Pads

Top loading

Shimano M8120 / M7120 / M6120

PROMAX DSK-930

-----------------------------------------------------

Fluid: Mineral oil

Pad: Sintered

Disc rotor: DT-180B (151.6g)

Standard rotor size: 180mm (front & rear)

Optional rotor size: 203mm (front & rear)

Weight: 285g / wheel

Packing: 25pcs / ctn / 1.34cuft

Produced in: Taiwan

Dropper Seat Post

Hydraulic Adjustable System with Wire Pulling System

--------------------------------------------------------------------

Material: AL6061 shaft + Forged alloy head / clamps

Offset: 0 mm

Rise: ±13˚

Finish: Black / Silver / Anodized / S.B. color

Packing: 50pcs / ctn / 1.3cuft

Produced in: Taiwan

Unique no side-play adjustment mechanism design to

secure a stiffer and safer ride

----------------------------------------------------------------

Material: Forged AL6061

Angle: 90°~140°

Extension: MQ-574L: 110mm

MQ-574SL:90mm

Bar bore: Ø35mm

Quill Dia: Ø25.4mm

Quill length: 150 / 180 / 230mm

Weight: 583g; Ø25.4 x 180mm Quill

Finish: Black / Silver / Anodized / S.B. color

Packing: 30pcs / ctn / 0.87cuft

Produced in: Taiwan

Material: AL6061

Bar bore: Ø31.8mm

Up sweep: 4°

Back sweep: 9°

Width: 700 / 720 / 740 / 750 / 760 / 780mm

Rise: 15mm

Extension: 60mm

Clamp I.D. : Ø28.6mm

Stack height: 47.6mm

Weight: 559g: 700 / 566g: 720 / 573g: 740

580g: 750 / 587g: 760 / 594g: 780mm

Finish: Black / Silver / Anodized / S.B. color

Packing: 25pcs / ctn / 1.9cuft

Produced in: Taiwan
