King Rack Industrial Co., Ltd.

SCORPION PRO 3

Messeneuheit

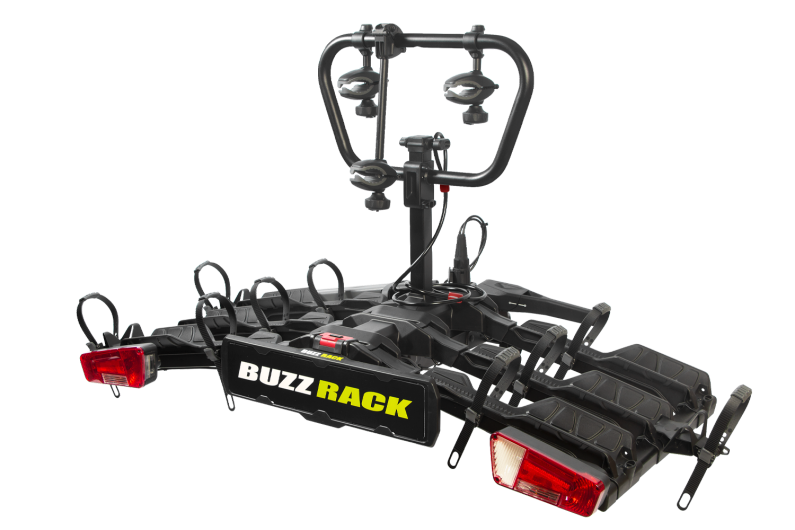

SCORPION PRO 3

King Rack Industrial Co., Ltd.

Beschreibung

SCORPION PRO3 is a fully-accessorized bike carrier specially designed for larger or heavier bikes, including electric ones. With a frame shape that makes fitting step-through bikes a breeze, it can hold almost any model you currently have or may acquire in the future.

Other features and specifications:

  • High end tow ball attachment : “Buzz high tech conic system” is one of the latest technologies available on the market. It is based on our Buzz Conic System and the experience we have acquired over the past 17 years producing it. This very simple system can secure 3 e-bikes to a simple 50mm diameter steel ball and pass all European certification requirements as well as the new ISO 11154.
  • Designed to carry e-bikes and heavy bikes: The distance between the bikes is large enough to eliminate interference between wide motors, hubs, pedals or forks. (30cm for Scorpion 2 – 22cm between first and second bike and 19cm between second and third bike for Scorpion 3)
  • Folding for easy storage : Fold the wheel support tubes by pulling on the release button, turn the vertical clamp frame 90 degrees and slide it down and your rack will sit nicely on its 4 wheels, allowing it to be moved without any effort and kept stable during storage or transportation.
  • Tilt down for tailgate access: You can gently tilt the platform by pulling the lever behind the license plate support or simply push the bottom of the license plate to operate the tilting mechanism. Thanks to this well-balanced mechanism, you will not have to support the full weight of the bikes to tilt the rack, even with a full load.
  • Strong bike attachment: Each bike is fixed using a locking clamp designed with a soft rubber pad to protect the frame. The clamp can fit a tube size from a diameter of 25mm to 60mm. In the 3 bike versions, the 3rd clamp can be removed using a simple clip and positioned onto the frame differently for an easier loading of the bike.
  • High upright sliding frame fit for all bikes: Frame slides vertically and is wide enough so the attachment clamps can be positioned perfectly to catch the bike frame. The adjustable frame also accommodates for step-through bikes, where the best possible attachment point will usually be the seat tube. In the PRO version, the frame shape will make this fitting even easier.
  • Large wheel support for tires up to 4” size: Our wheel supports can hold any type of tires and they’re good looking too! They integrate a hook point to fix either a ramp or an antisway device that will prevent lateral movement of the front wheel. Both are available as accessories.
  • Strong ratchet straps and protective pads: The easiest way to fix the bike wheels is using ratchet straps. At BuzzRack we believe in simple systems; the easiest way to tighten the ratchet is to pull on it, it won’t jam from the dirt you can get in the back of your car. A protective rubber pad will help prevent scratches on your nice aluminum or carbon rims.
  • Front wheel anti-sway device: This feature included with the PRO version and available as a kit for the LITE version is designed to prevent the front wheel from moving too much during transportation. It provides a second attachment point using a ratchet strap.
  • Integrated aluminum ramp: The Scorpion PRO has its own integrated ramp. Made of 2 pieces of aluminum extrusions that connect together, the ramp is simply positioned at the end of the wheel support and requires no tool. You can securely move your bike along the ramp. Once the bikes are installed, you can remove the ramp and place the pieces together in the receiving plastic brackets at the rear of the bike rack, securing them with the rubber straps.
  • Locking: The clamps holding the bike frames and the tow ball attachment system can be locked with the same key.
  • Locking cable: As an additional safety measure, we supply the Scorpion PRO with a standard 10mm diameter double loop cable that can be used with the same locking cap that secures the vertical frame.
  • Lights: Supplied with standard 5 function lights and a 13 pin plug. Electrical adapters are available for those with 7 pin systems.
  • License plate: The rack comes equipped with a special removable support in which to slide European license plates. It is also available as a spare part for those who have several cars – and thus license plates – and want to easily switch the rack from one to the other.
  • Rack structure: The structure of this rack is made entirely out of steel. It has been designed to pass the latest international standard (ISO 11154), following our own internal tests. The coating provides high protection against corrosion and is UV resistant.
  • Protective cover: A protective cover hides and protect the mechanical functions of the rack from dirt and water and includes a 13 pin plug receiver to facilitate storage.
  • Safety strap: All our products come with a strap for added security.
  • The wheel holders will accommodate larger wheelbases; up to 138.4cm.
  • Different styles of ramps are available separately.
  • The maximum permitted load you can carry is also determined by the tow bar nose weight; you will need to check you don’t exceed this before using any tow ball mounted bike carrier.
  • Requires 65mm clearance from center of tow ball to rear of vehicle.
  • Not suitable for trailers, campers, or RVs

Mehr Produkte von King Rack Industrial Co., Ltd.

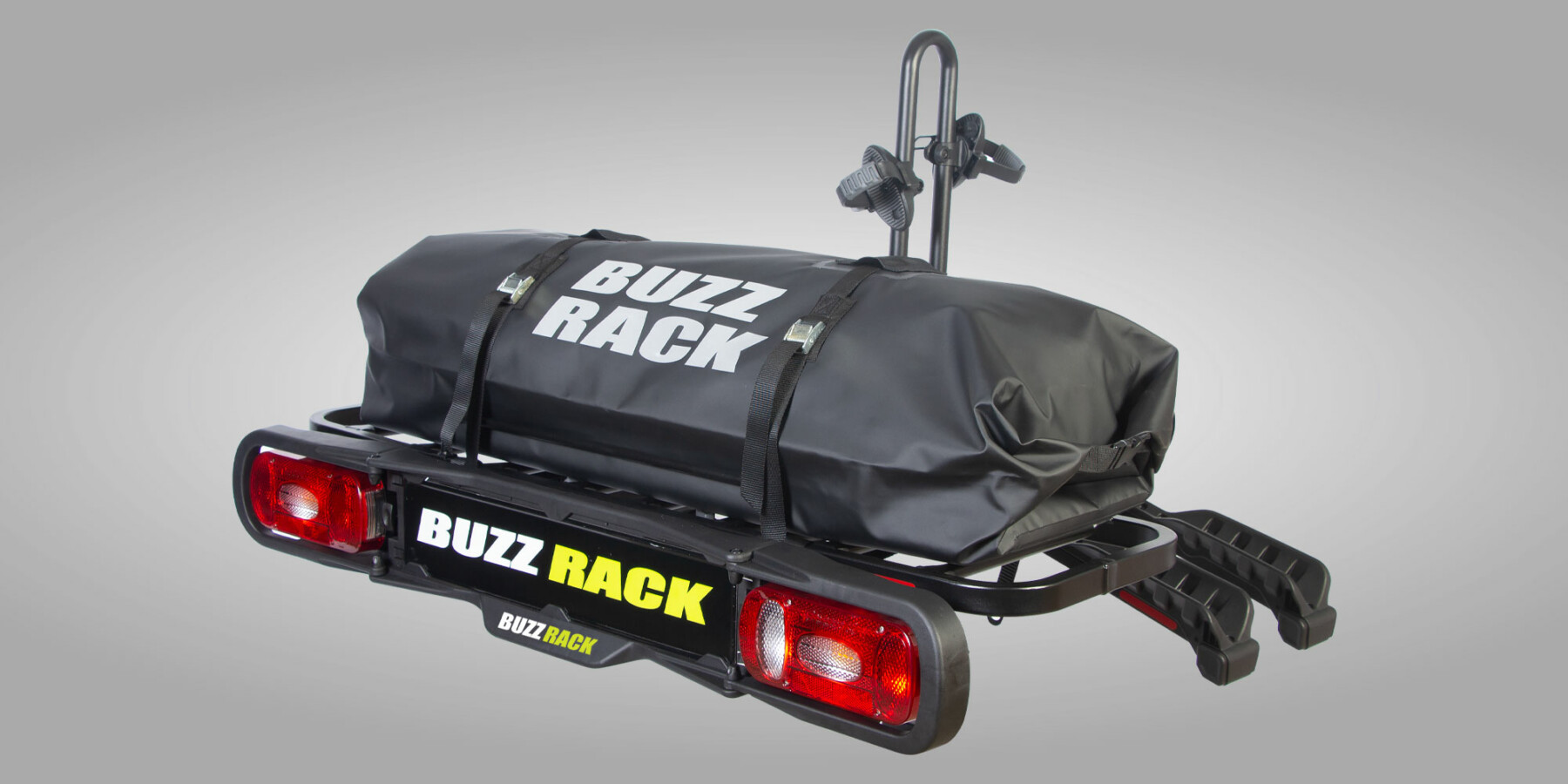

TWINBUZZ (DAFA Big Light)

TWINBUZZ is a smart product for people looking for “modular use” according to their needs.

  • “Family” use: it can be transformed into a solution for transporting 4 bicycles.
  • “Minimalist” use: it can be transformed into a solution for transporting 2 bicycles.
  • “Mixed” use: it turns into a solution for transporting 2 bikes and a platform with its waterproof bag.
  • Additional boot volume: it converts into a cargo platform with its waterproof bag.

Each modular TWINBUZZ transformation is very easy to do without the use of tools with only clamping wheels.

Features and Benefits:

  • This rack is supplied with standard 5 function lights and a 13 pin plug. Electrical
    adapters are available for those with 7 pin systems.
  • The wheel holders will accommodate most wheelbases, even small children’s bikes. Check technical data below.
  • The long wheel rubber-padded wheel straps hold tyres up to 3.25” wide; pull on them to tighten, and use the quick release to loosen.
  • The TWINBUZZ is entirely suitable for carbon frame bikes; the rubber-padded bike frame cradles rotate 360 degrees and, again using rubber-padded straps, they hold any type of tube firmly but gently. Longer frame straps are available.
  • Bikes up to 20kg may be carried; the down tube size is limited to 75mm diameter (3″); whatever bikes you have, always load the heaviest bikes nearest to the car.
  • The 100% waterproof TWINBUZZ bag can be attached to the platform using 2 straps. Max volume of 60l.
  • The TWINBUZZ platform can also be used without its waterproof bag to transport objects securely attached using the 2 straps supplied (it is recommended to use more straps if your load requires it).
  • The platform with its bag can carry up to 20kg.
  • Optional: There is a built-in locking cable to secure your bikes; as usual with cable locks, it is theft deterrent only.
  • Whatever configuration, the maximum permitted load is 60kg.

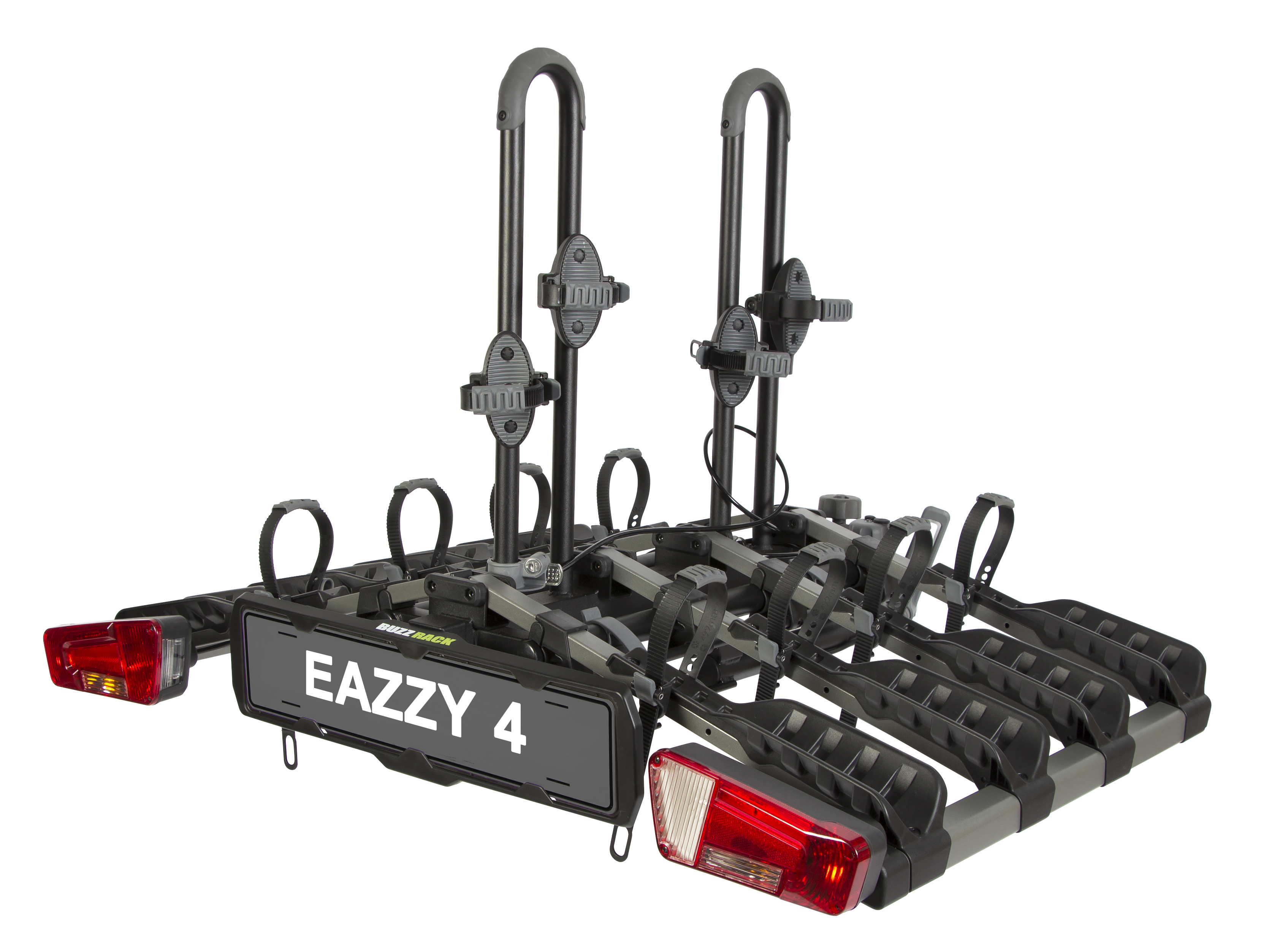

Eazzy 4

Fully foldable EAZZY series offer convenient mounting, user-friendly functions and compact storage. The ratchet cradle is the perfect solution to attach the bike frame. It is also a great solution for carbon frames as it does not apply pressure to the carbon tubes.

Features and Benefits:

  • The wheel holders will accommodate most wheelbases, even small children’s bikes.
  • The long wheel rubber-padded wheel straps hold tyres up to 3.25” wide; pull on them to tighten, and use the quick release to loosen.
  • The Eazzy 4 is entirely suitable for carbon frame bikes; the rubber-padded bike frame cradles rotate 360 degrees and, again using rubber-padded straps, they hold any type of tube firmly but gently.
  • The maximum permitted load is 60kg, with no bike weighing more than 20kg.
  • Bikes up to 20kg may be carried; the down tube size is limited to 75mm diameter (3″); whatever bikes you have, always load the heaviest bikes nearest to the car.
  • There is a built in locking cable to secure your bikes; as usual with cable locks, it’s a deterrent only.
  • The patented conical fitting fits to all tow balls, even to the bolt-on tow balls we see occasionally that do not meet standards for neck length or ball diameter.
  • A reminder that it locks to the tow ball.
  • The Eazzy 4 sits high on the tow ball, well clear of speed bumps and other hazards such as steep ferry ramps.
  • Dimensions: 112cm wide x 94cm deep (measured from the centre of the tow ball to the outside edge of the number plate holder). 24cm wide when folded.
  • Weight: 19.8kg
  • The build quality – tube bending, welding, rust proofing, painting, component quality, is exemplary. The whole carrier looks and feels like the class act it is. All tools you might need are provided.
  • The maximum permitted load you can carry is also determined by the tow bar nose weight; you will need to check you don’t exceed this before using any tow ball mounted bike carrier.
  • Requires 65mm clearance from center of tow ball to rear of vehicle.
  • Not suitable for trailers, campers, or RVs

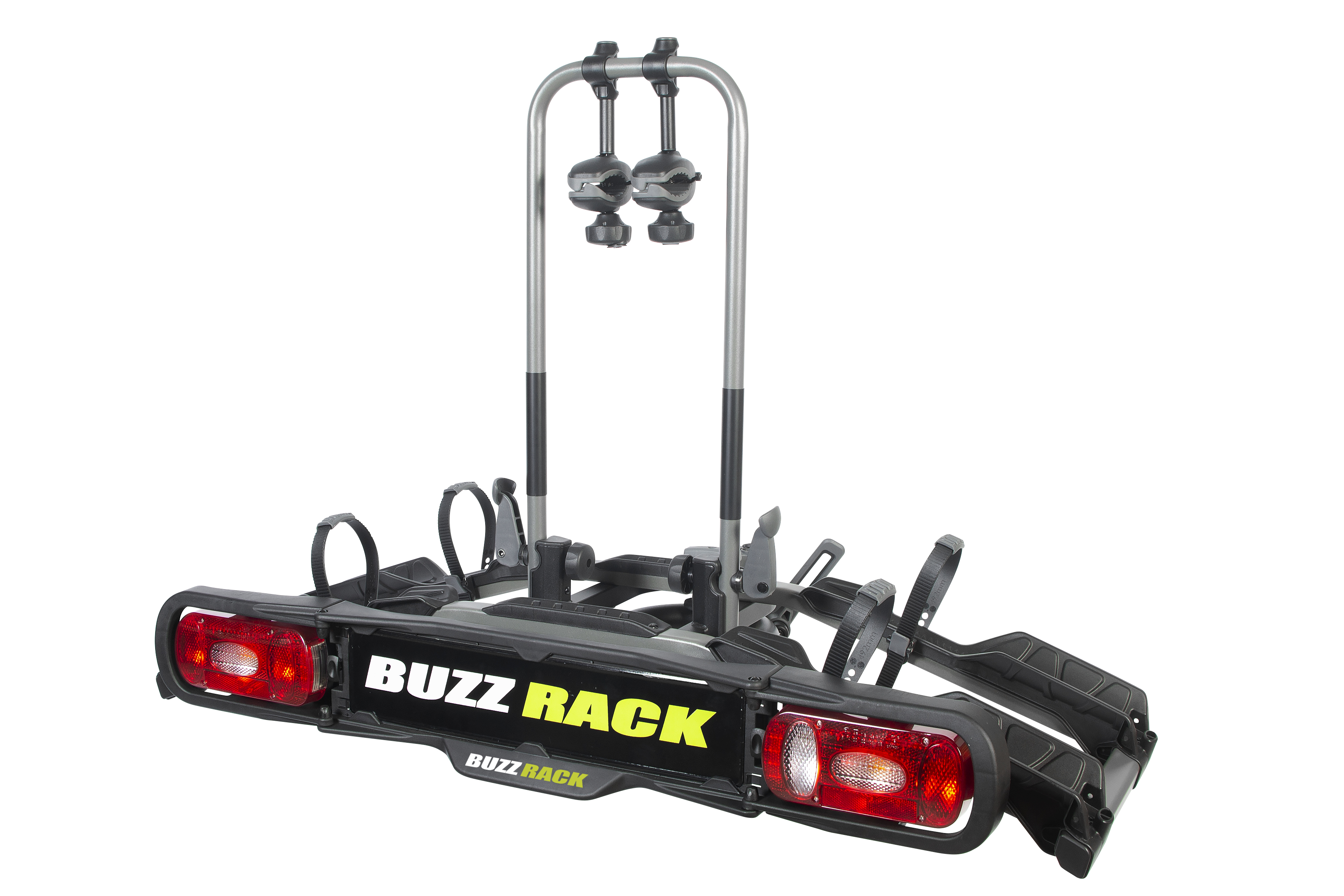

Hornet 2 (DAFA Big Light)

E-HORNET series offer convenient mounting, user-friendly functions, heavy duty construction for carrying e-bikes. The large wheel support allow stable mounting of tires up to 4″ size. The locking clamp is the perfect solution to attach the bike frame. Simple design, strong and durable.

Features and Benefits:

  • The wheel holders will accommodate most wheelbases, even small children’s bikes.
  • The long rubber-padded wheel straps hold tyres up to 4” wide; pull on them to tighten, and use the quick release to loosen.
  • The lockable frame arms hold your bikes securely and can be attached to any part of the frame, or the seat post. They can be locked using the same key as the tow ball attachment system.
  • The maximum permitted load is 60kg, with no bike weighing more than 30kg.
  • The patented conical fitting fits to all tow balls, even to the bolt-on tow balls we see occasionally that do not meet standards for neck length or ball diameter.
  • A reminder that it locks to the tow ball.
  • The E-HORNET 2 sits high on the tow ball, well clear of speed bumps and other hazards such as steep ferry ramps.
  • The build quality – tube bending, welding, rust proofing, painting, component quality, is exemplary. The whole carrier looks and feels like the class act it is. All tools you might need are provided.
  • A loading ramp is available separately.
  • The maximum permitted load you can carry is also determined by the tow bar nose weight; you will need to check you don’t exceed this before using any tow ball mounted bike carrier.
  • Requires 65mm clearance from center of tow ball to rear of vehicle.
  • Not suitable for trailers, campers, or RVs
