CHAdeMO Association
Description

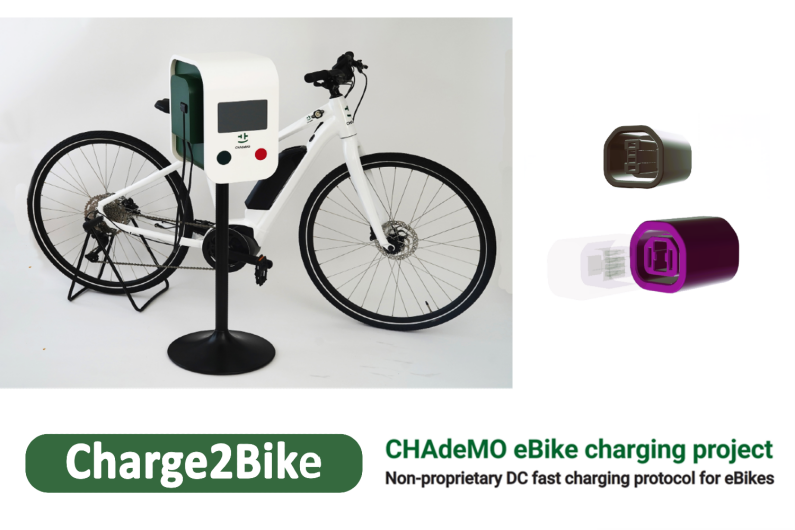

CHAdeMO Association’s EPAC charger standard (Charge2Bike) is a charging standard designed specifically for electrically power assisted cycles (EPACs), with a maximum output of 800W.
Specifications: - Max power 800W (2kW by extended mode) - Voltage range 24-60Vdc - Max current 20A - CC or CC/CV charging mode - Targeted battery 7-14 cell Li-ion batteries (<1000Wh) Key features: - Small and robust standard connector with a wide charging range - Optimised power for e-Bikes - CAN-based communication which does not affect EPAC standards - Electrical safety and mechanical requirements for outdoor use - Supporting home charger applications and charging station applications - Easy backward compatibility with existing EPACs through ‘connection adapters’ The Connector: - Dimensions X18.4mm * Y16.1mm - 6 terminals (2 power, 4 signal) - Finger protection (touch proof) (compliant with UL standard) - IP45 (dustproof, waterproof) - Repeated insertion and removal durability: 10,000 times or more - UL94 V-0 / RoHS Pb free - Includes a safety mechanism when mating Envisaged use case examples: 1) Charging station - For public, semi-public and private fleet use, including shops and delivery services - Max 800W output - Max 60Vdc output - CC or CC/CV charging mode 2) Desctop charger - For private use, at home or in garage - 100W - 250W output - Max 60Vdc output - CC/CV charging mode
