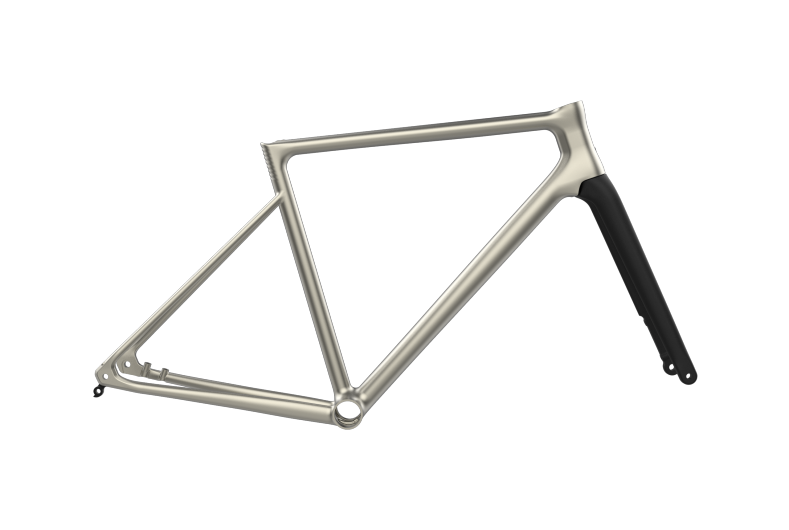

Model name：2025 HL G0 Pro (TITANIUM GRAVEL FRAME)
Size: Can be customized
Headtube: 3D Printing, 6AL/4V
Drop out: 3D Printing, 6AL/4V
Bottom Bracket：T47 85.5mm
Cable Routing：Full Internal Cable Routing: simple and clean
Driving System：Compatible in mechanical shift and electronic shift
Brake System：Flat mount
Seat post specification：30.9mm
Seat clamp specification：Internal seat clamp
Front Derailleur：34.9mm
Headset：1-1/8" - 1.5" IS 52/ IS 52mm
Hub Central Space：F100 x 12； R142 x 12 mm
Max Tire：ETRTO：50-622 inch：29 x 2.0：700×50C
Thru-axle：F125-M12xP1.5 R169-M12xP1.0

Model name: 2025 HL ALL ROAD 02 Fork
Size: 1 1/8"-1.5"
Brake System: Flat mount
Offset: 45mm
Tyre diameter: 700c
Tyre:38mm
Tyre axle:12x100mm

Model name：2025 HL Titan Road (TITANIUM ROAD FRAME)
Size: Can be customized
Headtube: 3D Printing, 6AL/4V
Drop out: 3D Printing, 6AL/4V
Bottom Bracket：3D Printing BB, T47x86.5
Cable Routing：Full Internal Cable Routing: simple and clean
Driving System：Compatible in mechanical shift and electronic shift
Brake System：Flat mount
Seat post specification：27.2mm
Seat clamp specification：Internal Seat clamp
Front Derailleur：BRAZED-ON
Headset：1-1/8" - 1.5" IS 52/ IS 52mm
Hub Central Space：F100 x 12； R142 x 12 mm
Max Tire：ETRTO：35-622 inch：28 x 1.35：700×35C
Thru-axle：F125mm M12XP1.5、R163mm M12XP1.0

Model Name: 2025 HLM9 (Titanium MTB FRAME)
Size: Can be customized
Headtube: 3D Printing, 6AL/4V
Drop out: 3D Printing, 6AL/4V, UDH Hanger
Bottom Bracket: T47 BB 73mm
Cable Routing : Full Internal Cable Routing: simple and clean
Driving System: Compatible in mechanical shift and electronic shift
Brake System: Post mount
Seat post specification: 30.9mm
Seat clamp specification: 34.9mm
Front Derailleur: 34.9mm
Headset: 1-1/8" IS 52/ EC 56 mm
Hub Central Space: 148.0 x 12 mm
Max Tire: ETRTO: 55-622/60-584 inch: 29'' x 2.15/27.5 x 2.2 : 650B
Thru-axle：L174mm M12XP1.0
