B. Ketterer Söhne GmbH & Co. KG

KET-LIFT4BIKE SoloStand - Electric bike mounting stand

KET-LIFT4BIKE SoloStand - Electric bike mounting stand

B. Ketterer Söhne GmbH & Co. KG
Supplier profileAll products
Contact supplierContact persons

Description

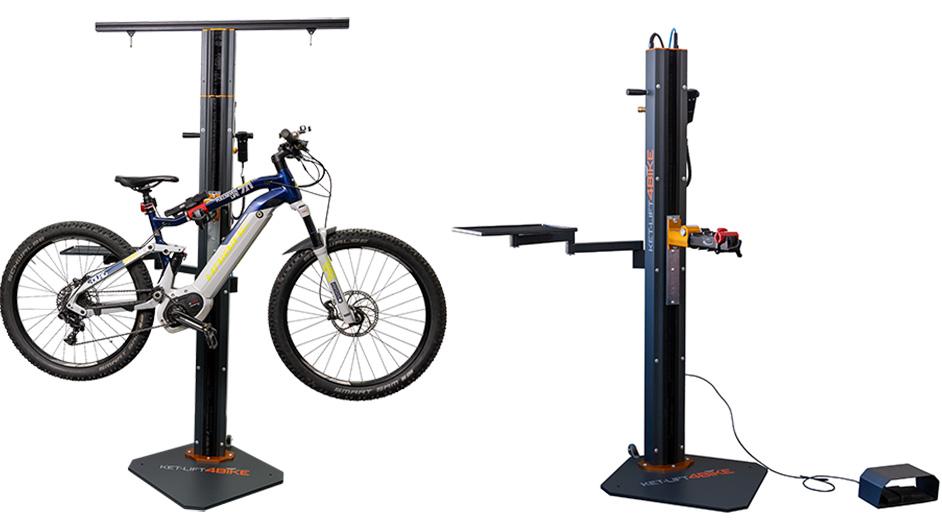

KET-LIFT4BIKE "SoloStand"

https://www.bike-repair-stand.com/products

A simple press on the industrial hand switch or foot switch moves your bike to the desired working height at 80mm/sec. And here too, you can rotate your bike to the perfect assembly position once lifted.The highlights
  • Designed and manufactured in Furtwangen, Germany
  • Suitable for bicycles, e-bikes, MTBs and road bikes up to 50 kg
  • High stability
  • Ergonomic working due to stepless height adjustment
  • Steel lifting column with top-mounted power and pressure connections
  • Two 230V sockets and two USB ports at working height
  • Optional: Base plate with castors for mobile use, tool tray with swivel arm for laptop and small parts, elevation with crossbar for hanging tools and foot switch
  • Customisable to meet individual customer requirements
  • Maintenance free

  • Suitable for: E-bikes, mountain bikes, road bikes, other two-wheelers
  • Maximum load capacity: VAR clamp -> 50 kg/ Park Tool clamp -> 45 kg/ Feedback clamp -> 39 kg
    Tip Top clamp -> 35 kg
  • Speed: 80 mm/sec.
  • Lift column dimensions ( W / D / H ):35 cm / 23 cm / 189.5 cm (without base plate)
    35 cm / 23 cm / 192 cm (with base plate)
  • Min./ Max. working height: 42 cm/ 189 cm
  • Base plate: Steel, 60 cm x 60 cm x 1.5 cm, 40 kg
  • Operator control: Hand switch (included), foot switch (optional)
  • Safety features: Collision safety cut-out with reverse function
  • Fixing clamps: Park Tool, VAR, Feedback, Tip-Top 3-point
  • Special features: 360° rotating clamps, transport wheels for flexible positioning of the KET-LIFT4BIKE
  • Warranty period 2 years

More from us

Our website

More products by B. Ketterer Söhne GmbH & Co. KG

Trade fair innovation

KET-LIFT4BIKE DuoStand - Double electric bike mounting stand

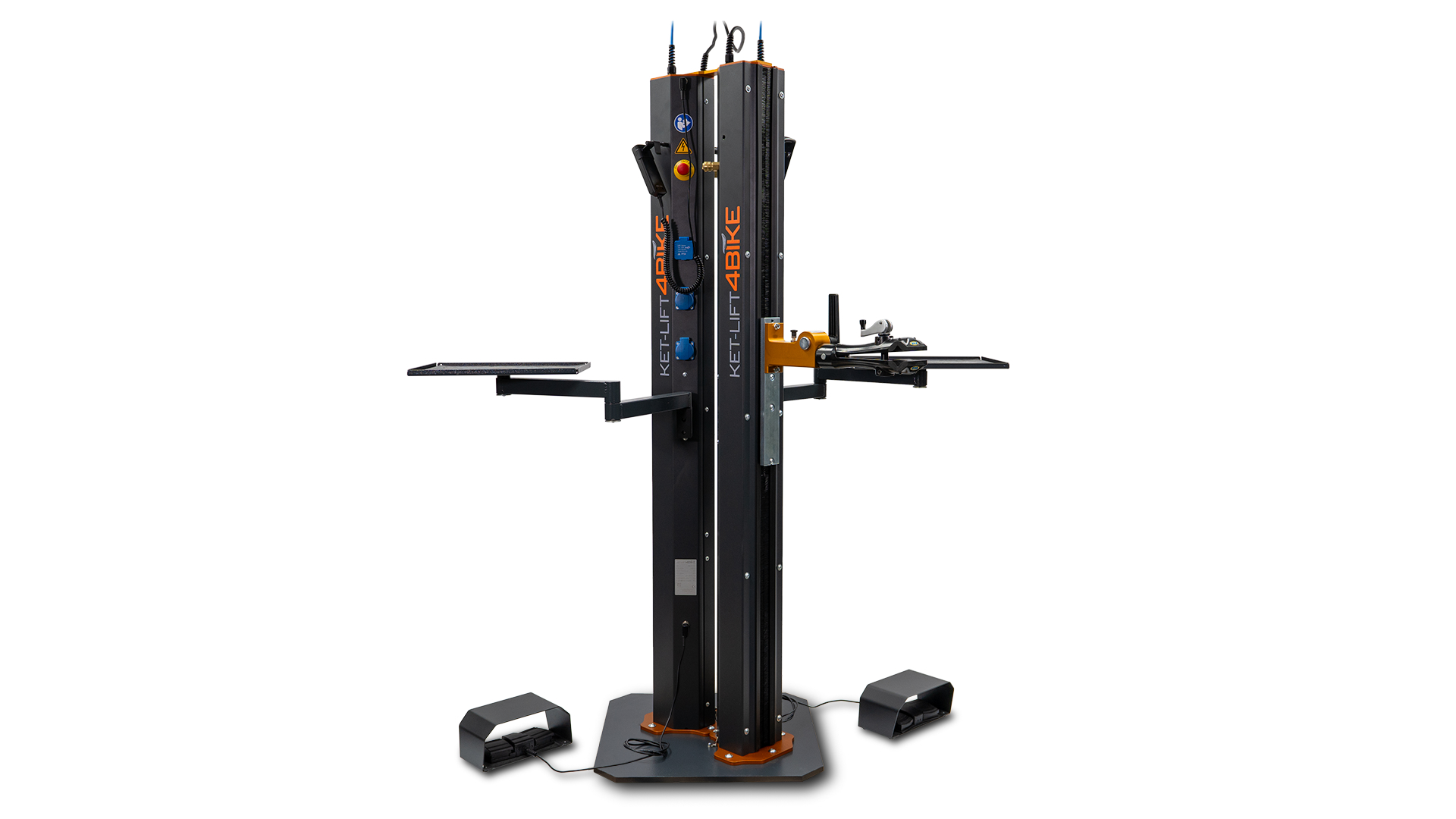

KET-LIFT4BIKE "DuoStand"

https://www.bike-repair-stand.com/products

For bicycle workshops with high service volume or limited space, the KET-LIFT4BIKE DuoStand is the ideal solution. Two independently electrically height-adjustable lifting columns mounted on a single, heavy-duty base plate allow for simultaneous, ergonomic servicing of two bikes – fully electric, compact, and exceptionally stable.

Highlights

  • Developed and manufactured in Furtwangen in the Black Forest
  • Suitable for bicycles, e-bikes, MTBs, and racing bikes up to 50 kg
  • Maximum stability and safety
  • Ergonomic work through stepless height adjustment
  • Steel lifting columns
  • Power and compressed air connection from above
  • Each column features two 230V power outlets and two USB ports at working height
  • Columns can be individually configured
  • Optional: Tool tray with swivel arm for laptops and small parts, foot switch, holding clamps
  • Maintenance-free

  • Suitable for: E-bikes, mountain bikes, road bikes, other two-wheelers
  • Maximum load capacity: VAR clamp -> 50 kg/ Park Tool clamp -> 45 kg/ Feedback clamp -> 39 kg
    Tip Top clamp -> 35 kg
  • Speed: 80 mm/sec.
  • Lift column dimensions ( W / D / H ): 35 cm / 23 cm / 192 cm (with base plate)
  • Min./ Max. working height: 42 cm/ 189 cm
  • Base plate: Steel, 60 cm x 60 cm x 1.5 cm, 40 kg
  • Operator control: Hand switch (included), foot switch (optional)
  • Safety features: Collision safety cut-out with reverse function
  • Fixing clamps: Park Tool, VAR, Feedback, Tip-Top 3-point
  • Special features: 360° rotating clamps, space-saving design with two lifting columns on a single
  • base plate
  • Warranty period 2 years

KET-LIFT4BIKE ManualStand - Manual operated bike repair stand

KET-LIFT4STAND "ManualStand"

https://www.bike-repair-stand.com/products

Be it with a crank or a torque-limited cordless screwdriver (max. 4 Nm), you can easily bring your bike to the ideal assembly height in no time, continuously up to a claw height of 1.9 meters, all without electricity.The highlights
  • Designed and manufactured in Furtwangen in the Black Forest
  • Suitable for bicycles, e-bikes, MTBs and road bikes up to 50 kg
  • High stability
  • Ergonomic working thanks to stepless height adjustment
  • Steel lifting column
  • Optional: base plate with castors for mobile use, tool tray with swivel arm for laptops and small parts, elevation with crossbar for hanging tools and foot switch
  • Adaptable to individual customer requirements
  • Maintenance free

  • Suitable for: E-bikes, mountain bikes, road bikes, other two-wheelers
  • Maximum load capacity: VAR clamp -> 50 kg/ Park Tool clamp -> 45 kg/ Feedback clamp -> 39 kg
    Tip Top clamp -> 35 kg
  • Speed: 2.2 mm/rev
  • Lift column dimensions ( W / D / H ): 35 cm / 23 cm / 181.5 cm (without base plate)
    35 cm / 23 cm / 189.8 cm (with base plate)
  • Min. / Max. working height: 42 cm/ 189.8 cm
  • Base plate: Steel, 60 cm x 60 cm x 1.5 cm, 40 kg
  • Actuation: Cordless screwdriver, (crank handle) -> Not included!
  • Fastening clamps: Park Tool, VAR, Feedback, Tip-Top 3-point
  • Special features: 360° rotating clamps, transport wheels for flexible positioning of the KET-LIFT4BIKE
  • Warranty period 2 years
